5KWh 10KWh 15KWh Wall-Mounted Battery Pack

Short Description:

High Performance 51.2V LiFePO4 Battery Residential Energy Storage Systems.
Available in 5kWh, 10kWh, and 15kWh capacities.
Wall-mounted design for compact, space-saving installation.
Optimized for solar PV charging and grid-tied operation.
Utilizes high-quality LiFePO4 battery cells for long lifespan.
Integrated battery management system ensures safe, reliable use.
Seamlessly integrates with solar inverters and home energy systems.
Modular, scalable architecture allows flexible capacity expansion.
Robust, weatherproof enclosure suitable for indoor or outdoor use.
Intuitive display provides at-a-glance battery status monitoring.
Backed by comprehensive warranty for peace of mind.

Equalization
Low Cost
High Performance
Reliable

GET A QUOTATION

Product Detail

Product Tags

System Applications

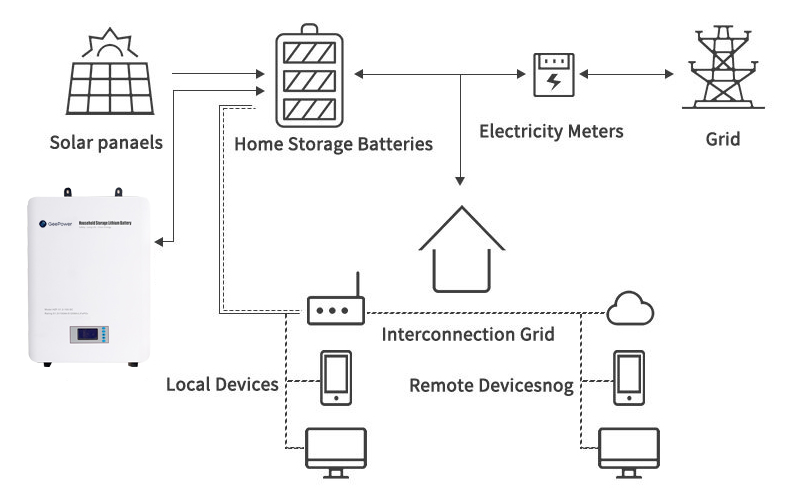

Wall-Mounted Residential ESS Application 0

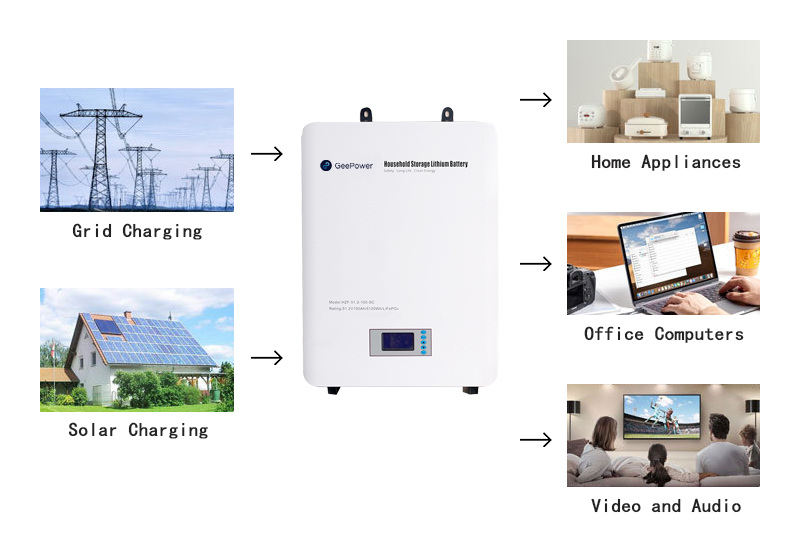

Wall-Mounted Residential ESS Application 1

Wall-Mounted Residential ESS Application 2

System Components

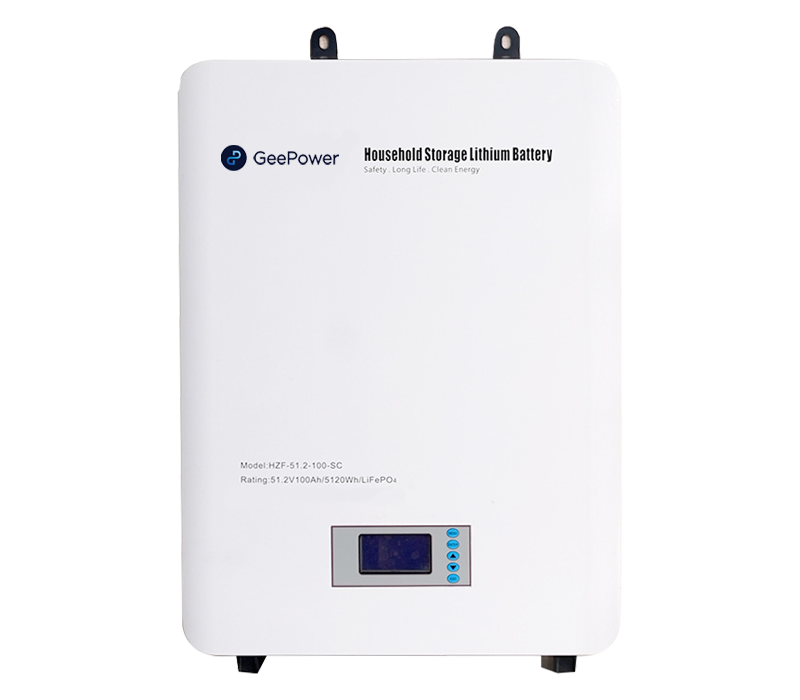

5.12KWh Battery Module

(LCD Screen)

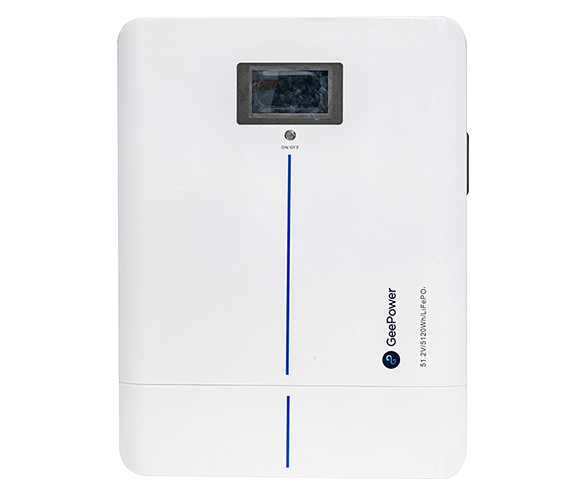

5.12KWh Battery Module

(Touch Screen)

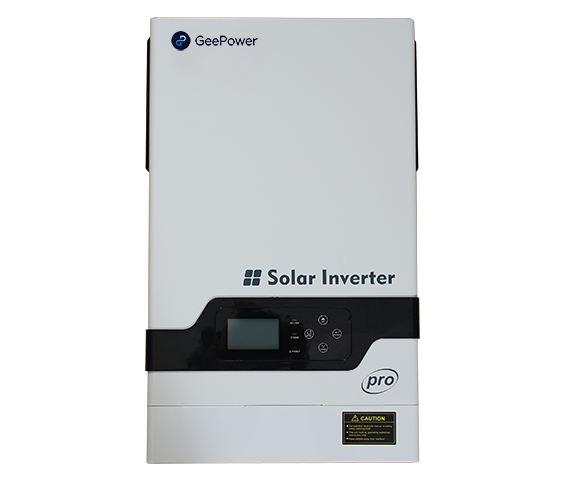

Inverter

(Optional)

Notes:

The touch screen model is newly upgraded, configuration is the same as the LCD model, screen has touch function, more convenient and popular.

The inverter is optional, you can choose according to the battery modules voltage, or you can use other matching inverters, please check with our sales for more details.

Battery Module Features

LiFePO4 battery cells, 5000+ cycle times & 10+ years lifespan, safe and reliable.

Each battery module equipped with a high-performance BMS system for scientific cell management.

The battery modules can be connected in parallel for expansion.

Supports communication matching of various inverters.

Wall mounted design, easy to install.

LCD screen displays various battery status. (The upgraded model with touch screen, more convenient)

Widely used in various application scenarios, such as home, office and store etc.

Battery Module Parameters

Battery Type	LiFePO4
Nominal Voltage	51.2V
Rated Power	5.12KWh
Rated Capacity	100Ah
Charging Voltage	58.4V
Discharging Cut-off Voltage	42V
Max Continuous Charge Current	50A
Max Continuous Discharge Current	100A
Net Weight	About 57kg
*Dimension [WTH] (mm)*	450212633
Charging Temperature Range	0~45℃
Discharging Temperature Range	-20~50℃
Cycle Life	5000 cycles
Protection Rating	IP20
Communication	CAN / RS 485
Warranty	5 Years

Inverter Features

Pure Sine Wave Output for Versatile Loads

450V Max PV Input, Grid-Tie Capability

Grid Charging up to 60A, Customizable

Multi-Mode Settings for PV, Grid, Battery

Wide Grid Voltage Range, User-Selectable

Comprehensive Protection Functions

Auto Restart on PV/Grid Restoration

Cold Start, USB, RS485 Monitoring

Optional WIFI Monitoring via Mobile App

Inverter Parameters

Model		HZPV18-5248 PRO	HZPV18-5548 PRO
Rated Battery Voltage		48VDC
Inverter Output	Rated Power	5200W / 5200W	5500W / 5500W
	Instantaneous Power	10400W	11000W
	Waveform	Pure sine wave
	AC Voltage (battery mode)	230VAC±5% (setting)
	Inverter Efficienty (peak)	90%
	Switching Time	10ms (UPS、VDE4105); 20ms (APL)
AC Input	Voltage	230VAC±5%
	Selectable Voltage Range	170~280VAC (UPS) 90~280VAC (APL) 184~253VAC (VED4105)
	Frequency range	50Hz / 60Hz (Auto detection)
Battery	Voltage	48VDC
	Floating Charge Voltage	54.8VDC
	Overcharge Protection	60VDC
Solar Charge & AC Charge	Max PV Array Open Circuit Voltage	450VDC
	Charging Algorithm	4-step (Li battery)
	Max PV Array Power	5000W / 6000W	6000W
	PV Array MPPT Voltage Range	150~430VDC
	Max Solar Charge Current	80A / 100A	120A
	Max AC Charge Current	60A / 80A	100A
	Max Charge Current	80A / 100A	120A
Machine Specifications	*Machine Dimensions [WHD] (mm)*	309505147
	*Package Dimensions [WHD] (mm)*	375655269
	Net Weight	14	14.4
	Gross Weight	16.4	16.8
Other	Humidity	5%~95% relative humidity (Non-condensing)
	Operating Temperature	0℃~50℃
	Storage Temperature	-15℃~60℃
