5KWh 10KWh 15KWh Rack Mount Battery Pack
Short Description:
-
High Performance 51.2V LiFePO4 Battery. -
5kWh, 10kWh, 15kWh capacity options.
-
Rack-mount design for flexible installation.
-
Solar PV charging, seamless grid integration.
-
LiFePO4 batteries for long lifespan.
-
Integrated battery management system.
-
Scalable, modular architecture.
-
Weatherproof enclosure for indoor/outdoor.
-
Intuitive display, comprehensive warranty.
-
Equalization -
Low Cost -
High Performance -
Reliable

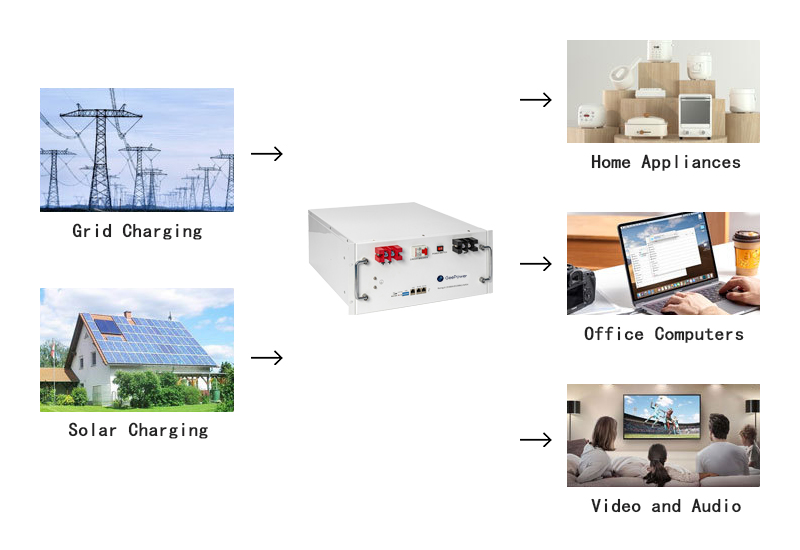

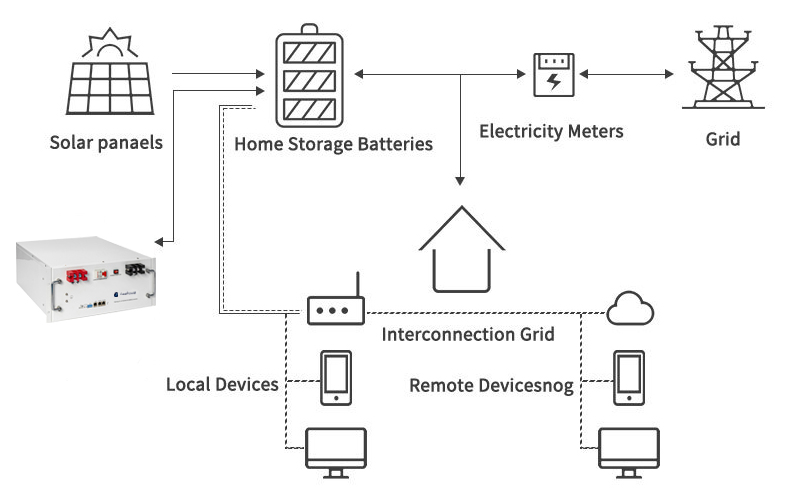

System Applications
System Components

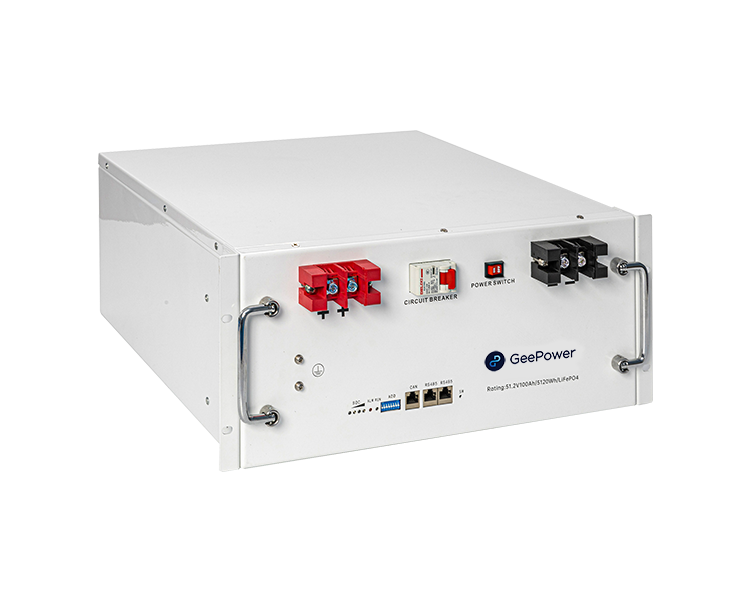

5.12KWh Battery Module

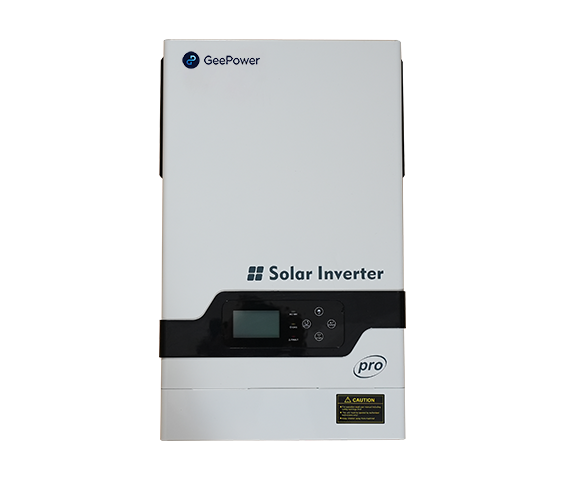

Inverter (Optional)
Notes:
The battery modules can be connected in parallel for expansion capacity.
The inverter is optional, you can choose according to the battery modules voltage, or you can use other matching inverters, please check with our sales for more details.
Battery Module Features
LiFePO4 battery cells, 5000+ cycle times & 10+ years lifespan, safe and reliable.
Each battery module equipped with a high-performance BMS system for scientific cell management.
The battery modules can be connected in parallel for expansion.
Supports communication matching of various inverters.
The battery module has a standard 19-inch rack design for easy installation.
Widely used in various application scenarios, such as home, office and store etc.
Battery Module Parameters
| Content | Specification | Remarks |
| Total Capacity | 100.0Ah | Rated discharge
Rated charge |
| Minimum Capacity | 98.0Ah | |
| Nominal Voltage | 51.2V | Configuration: 16cells in series
voltage of single cell is 3.2V |
| Min Discharge Voltage | 42.0V | |
| Max Charge Voltage | 58.4V | At 25±3℃ |
| Max Continuous Charge Current | 50A | At 25±3℃ |
| Max Continuous Discharge Current | 100A | At 25±3℃ |
| Operation Temperature Range | Charge 0~50℃
Discharge -20~60℃ |
|
| Humidity | 10%~85%RH
5%~85%RH |
Operation
Storage |
| Storage Temperature Range | 0~50℃ | Max. 6 months |
| Weight | ≤58kg | |
| Dimension [W*T*H] (mm) | 482*420*197 | |
| Cycle Life | ≥2000 | @0.2C 80% DOD |
Inverter Features
Pure Sine Wave Output for Versatile Loads
450V Max PV Input, Grid-Tie Capability
Grid Charging up to 60A, Customizable
Multi-Mode Settings for PV, Grid, Battery
Wide Grid Voltage Range, User-Selectable
Comprehensive Protection Functions
Auto Restart on PV/Grid Restoration
Cold Start, USB, RS485 Monitoring
Optional WIFI Monitoring via Mobile App
Inverter Parameters
| Model | HZPV18-5248 PRO | HZPV18-5548 PRO | |
| Rated Battery Voltage | 48VDC | ||
| Inverter Output |
Rated Power | 5200W / 5200W | 5500W / 5500W |
| Instantaneous Power | 10400W | 11000W | |
| Waveform | Pure sine wave | ||
| AC Voltage (battery mode) | 230VAC±5% (setting) | ||
| Inverter Efficienty (peak) | 90% | ||
| Switching Time | 10ms (UPS、VDE4105); 20ms (APL) | ||
| AC Input | Voltage | 230VAC±5% | |
| Selectable Voltage Range | 170~280VAC (UPS) 90~280VAC (APL) 184~253VAC (VED4105) | ||
| Frequency range | 50Hz / 60Hz (Auto detection) | ||
| Battery | Voltage | 48VDC | |
| Floating Charge Voltage | 54.8VDC | ||
| Overcharge Protection | 60VDC | ||
| Solar Charge & AC Charge | Max PV Array Open Circuit Voltage | 450VDC | |
| Charging Algorithm | 4-step (Li battery) | ||
| Max PV Array Power | 5000W / 6000W | 6000W | |
| PV Array MPPT Voltage Range | 150~430VDC | ||
| Max Solar Charge Current | 80A / 100A | 120A | |
| Max AC Charge Current | 60A / 80A | 100A | |
| Max Charge Current | 80A / 100A | 120A | |
| Machine Specifications | Machine Dimensions [W*H*D] (mm) | 309*505*147 | |
| Package Dimensions [W*H*D] (mm) | 375*655*269 | ||
| Net Weight | 14 | 14.4 | |
| Gross Weight | 16.4 | 16.8 | |
| Other | Humidity | 5%~95% relative humidity (Non-condensing) | |
| Operating Temperature | 0℃~50℃ | ||
| Storage Temperature | -15℃~60℃ | ||
