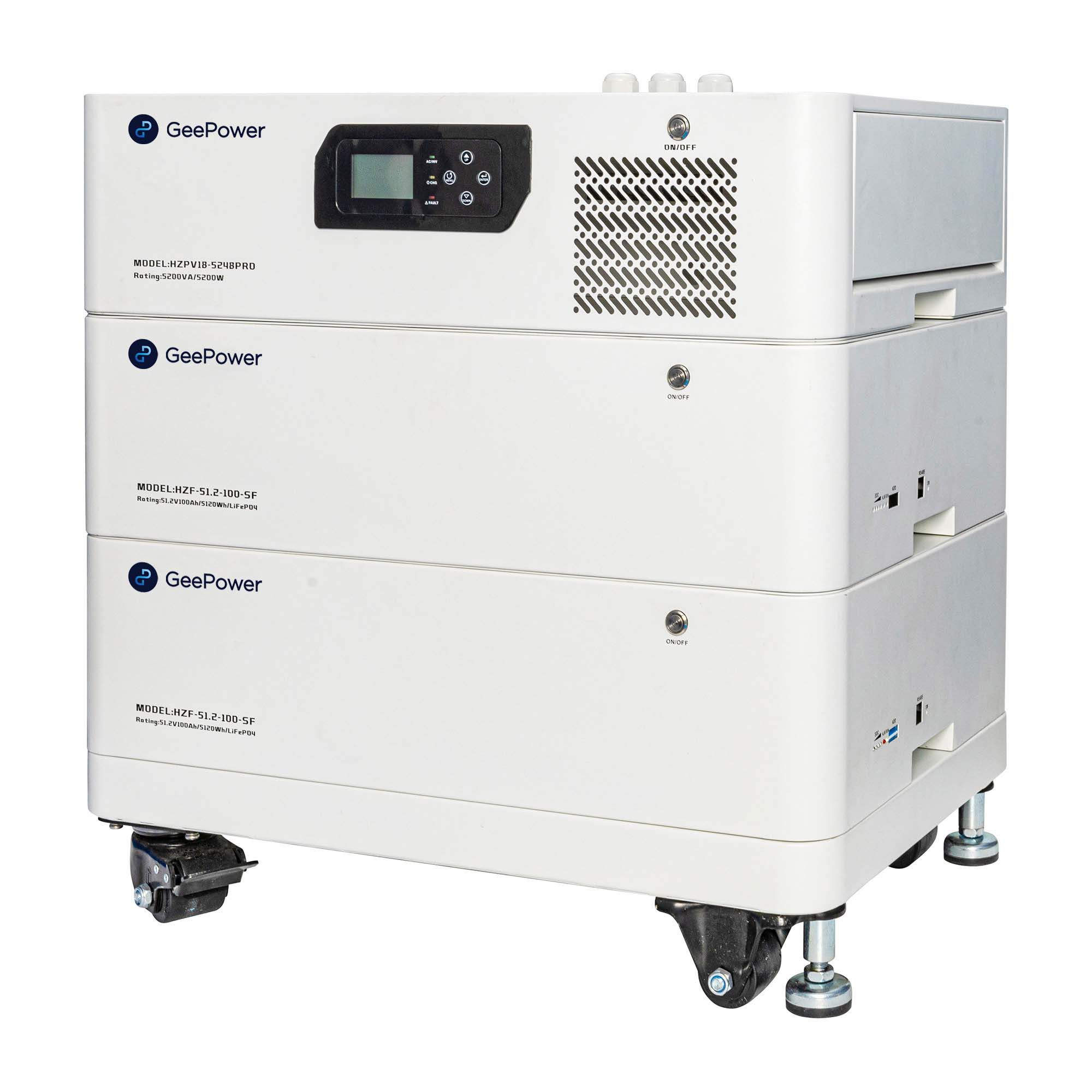

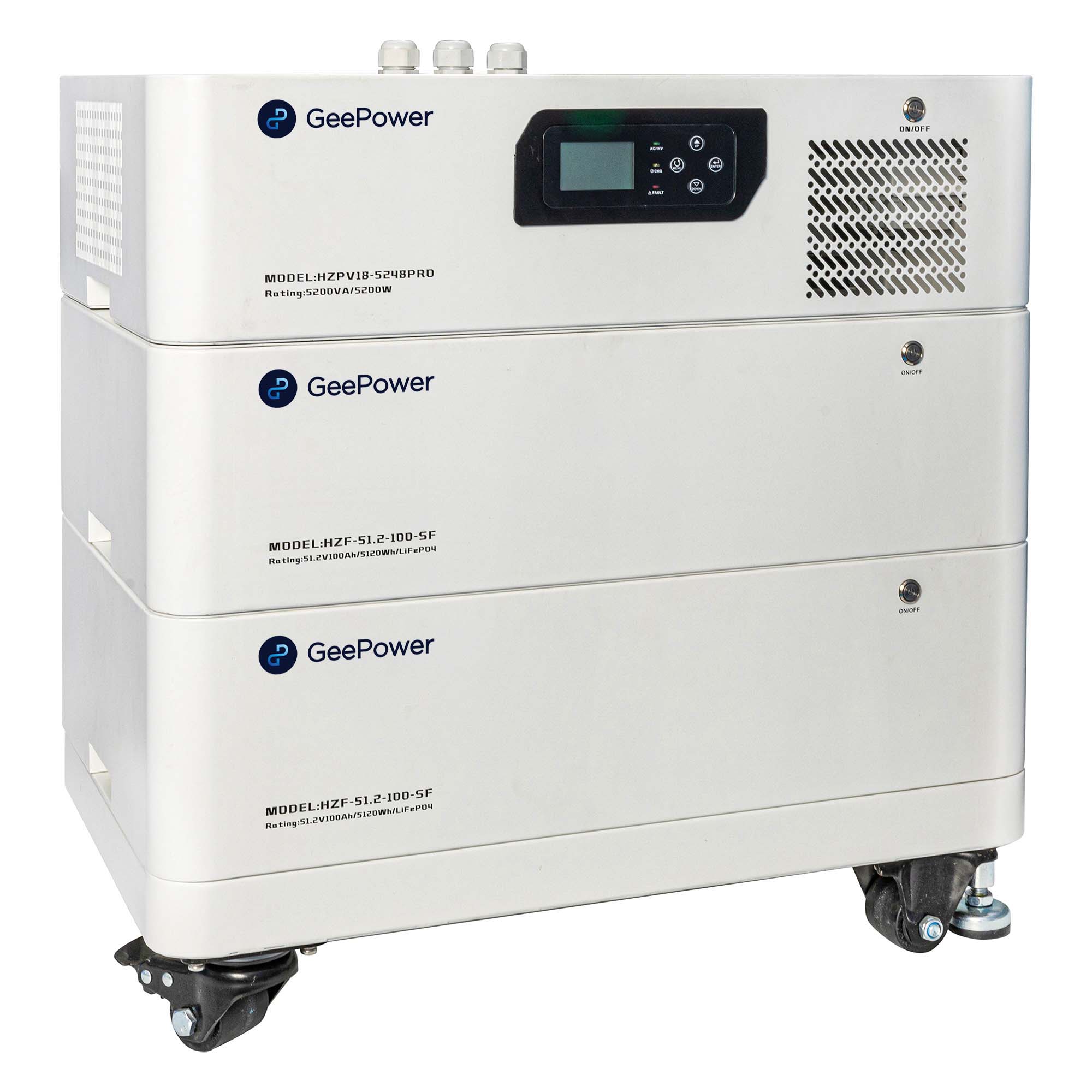

5KWh 10KWh 15KWh Residential ESS
Short Description:
-
5Battery Module LiFePO4 cells, high energy density. -
with 51.2V 100Ah 5.12kWh capacity.
-
6000+ cycle life, 10-year lifespan.
-
Scalable by stacking/paralleling.
-
5Inverter with 5.2kW off-grid AC output.
-
150-430VDC PV input range.
-
Optional WiFi connectivity.
-
5Smart BMS, Independent module monitoring.
-
Prevents overcharge, overdischarge.
-
Overcurrent, short-circuit protection.
-
5LCD Display and Intuitive battery status monitoring.
-
5 Features Modular, expandable design.
-
Built-in fire protection.
-
Movable base with swivel wheels.
-
Equalization -
Low Cost -
High Performance -
Reliable

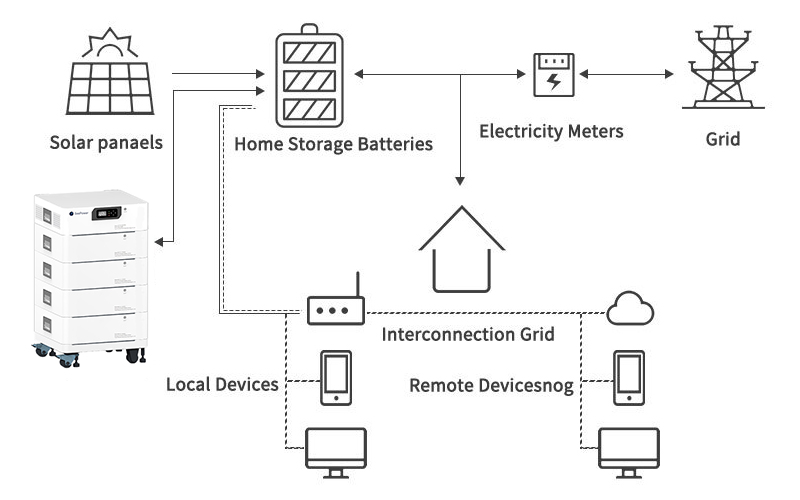

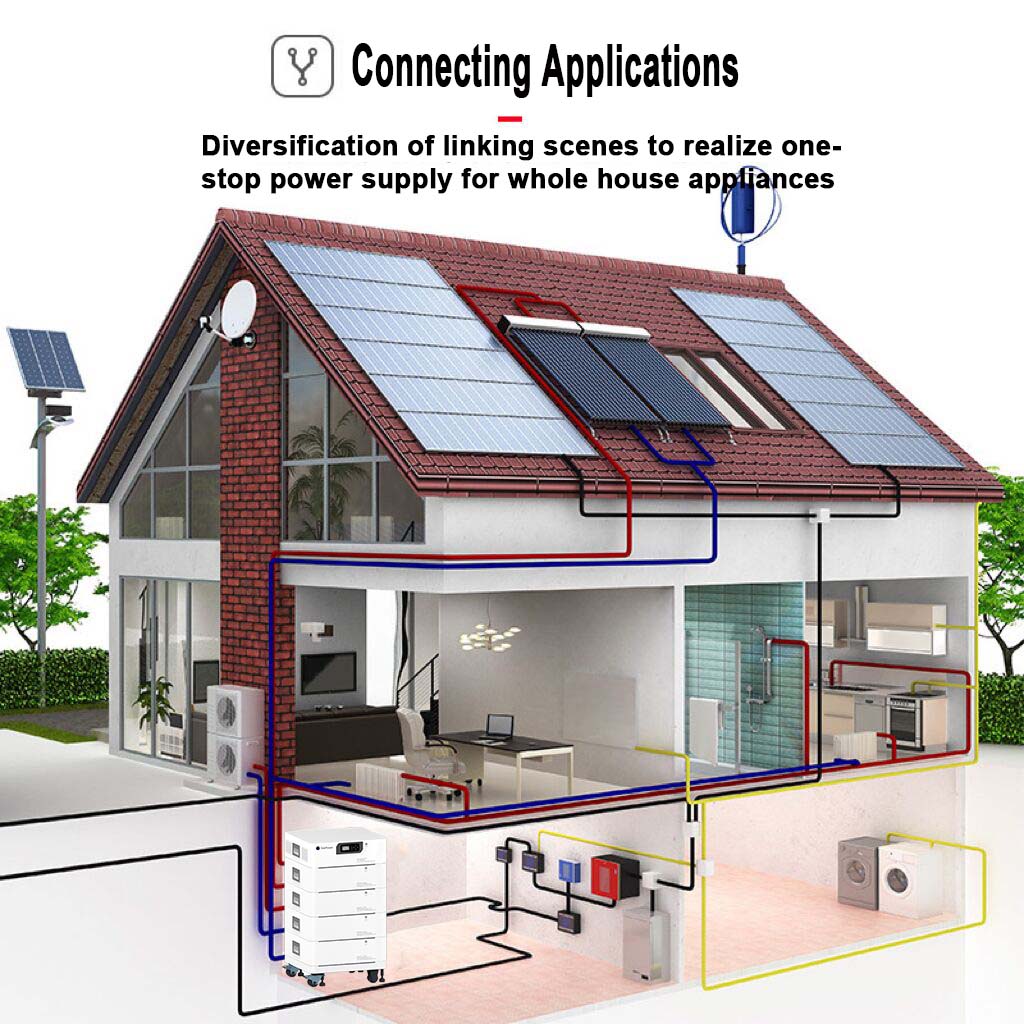

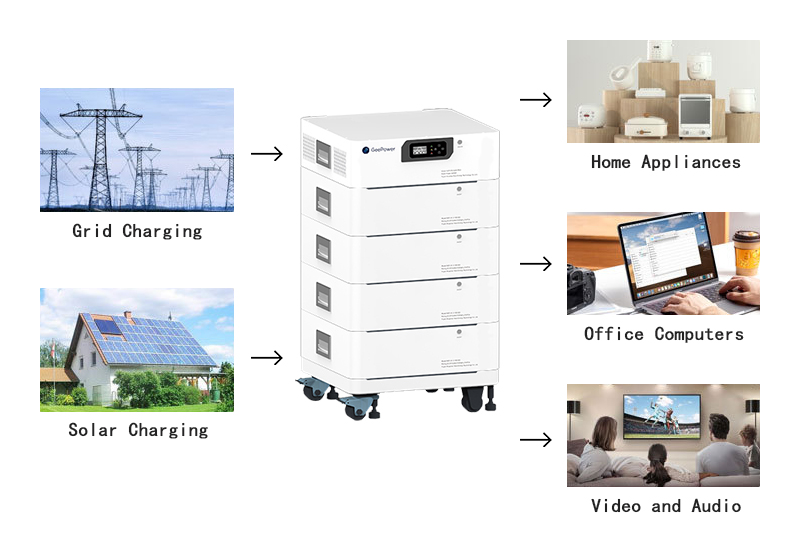

System Applications
Our Advantages
High Integration
Optional multi-function integrated inverter, integrate Inverter, MPPT Solar Charger and Battery Charger functions into one.
Has a wide PV input range, when the energy is sufficient, the battery can be left unconnected for loading.
High power density and small size, simple operation, high overall machine efficiency and small no-load loss.
Safe and Reliable
Grade A brand new LiFePO4 battery cells, no fire and no explosion.
Each battery module has an independent BMS, prevent overcharge, overdischarge, overcurrent and short circuit.
Built-in aerosol, active fire protection, more safe and reliable.

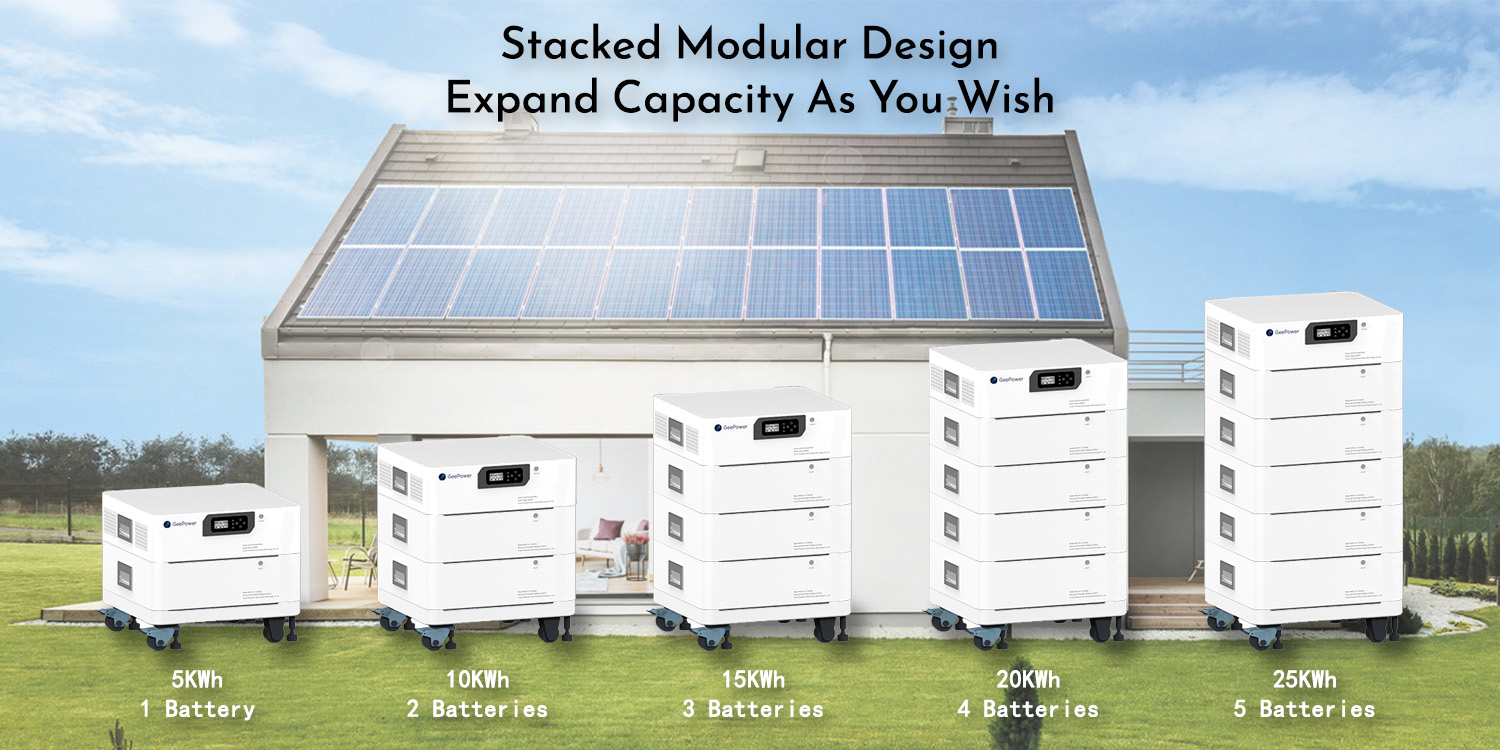

Modular

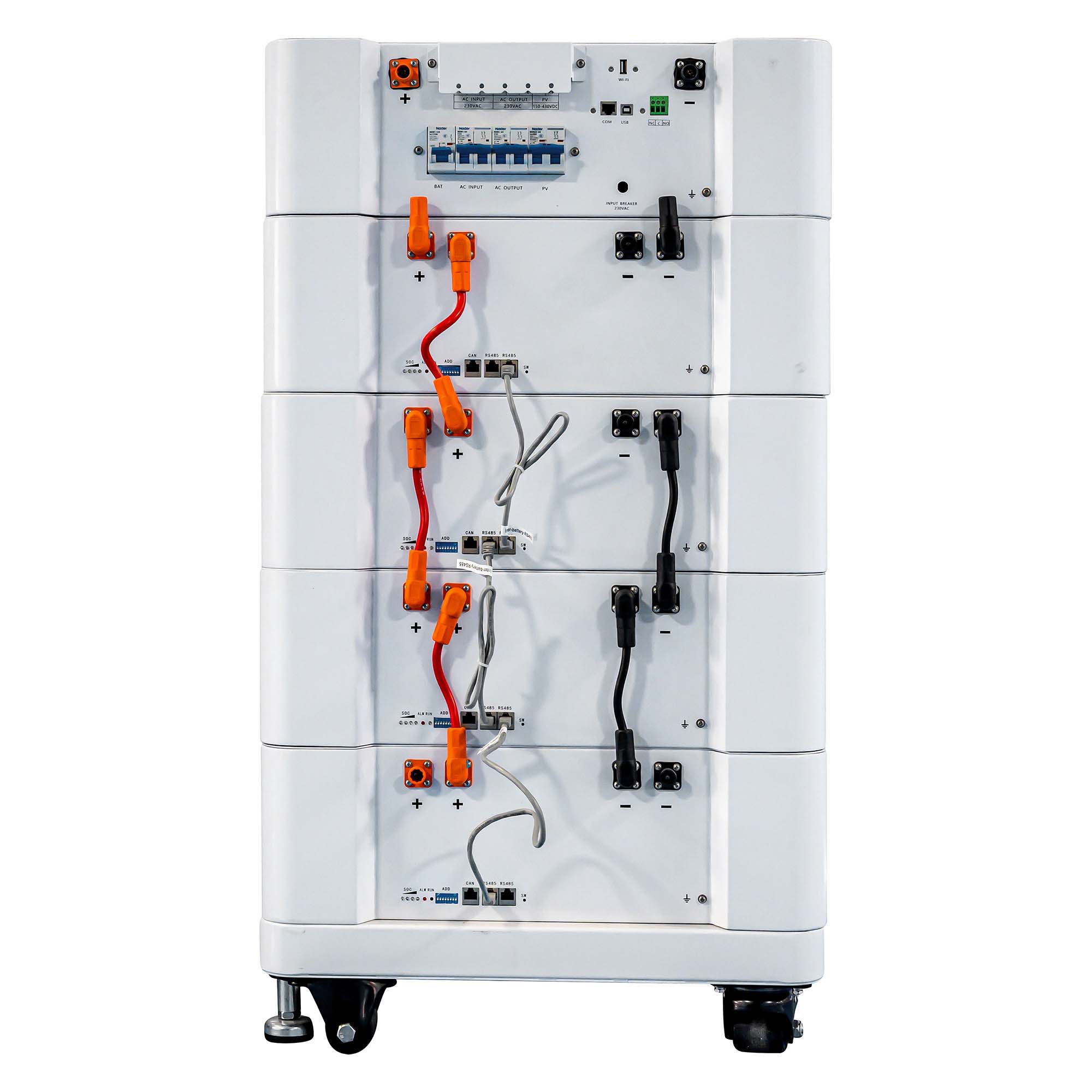

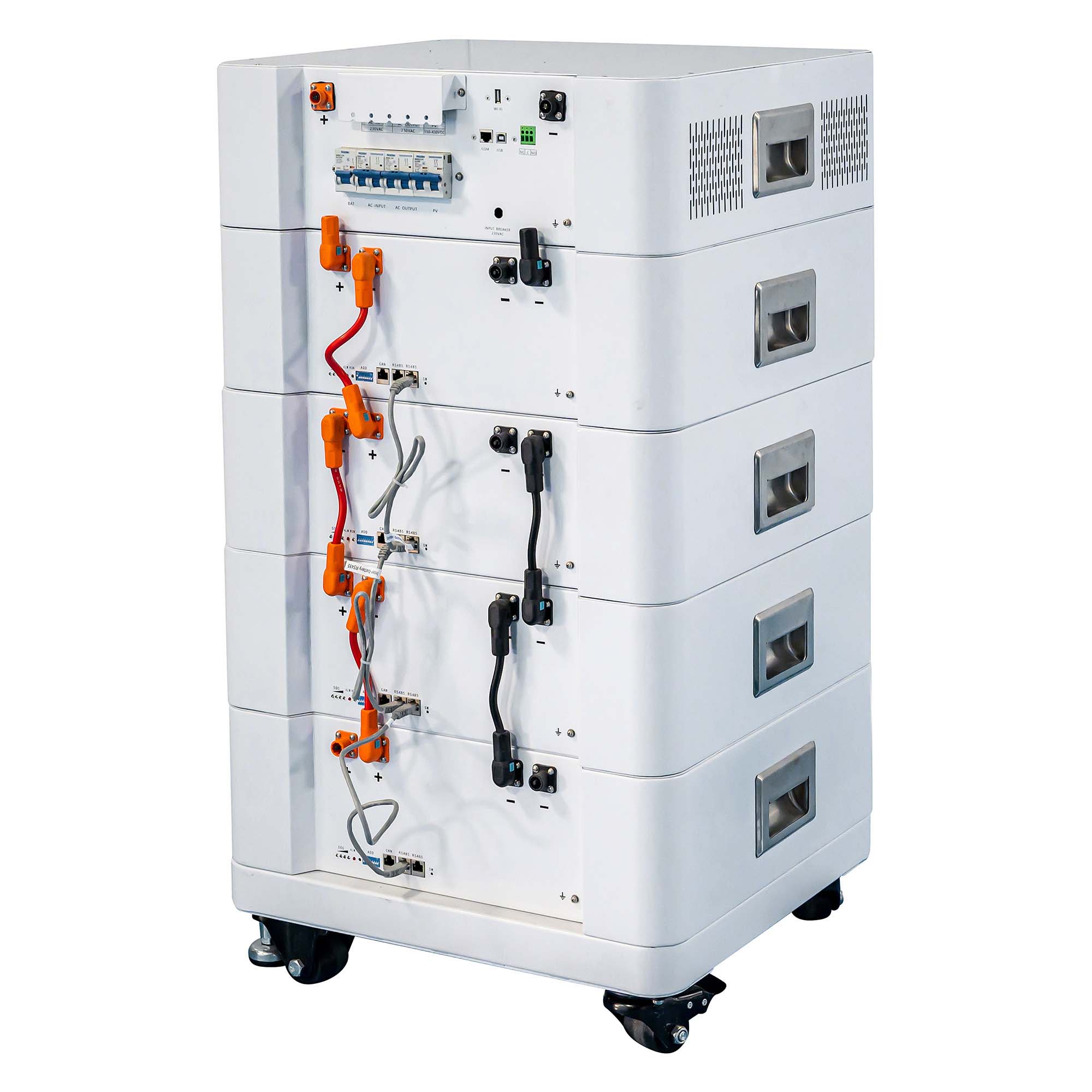

Stacked design, flexible expansion and easy installation.
Smart and Flexible
Smart LCD display, battery information at a glance.

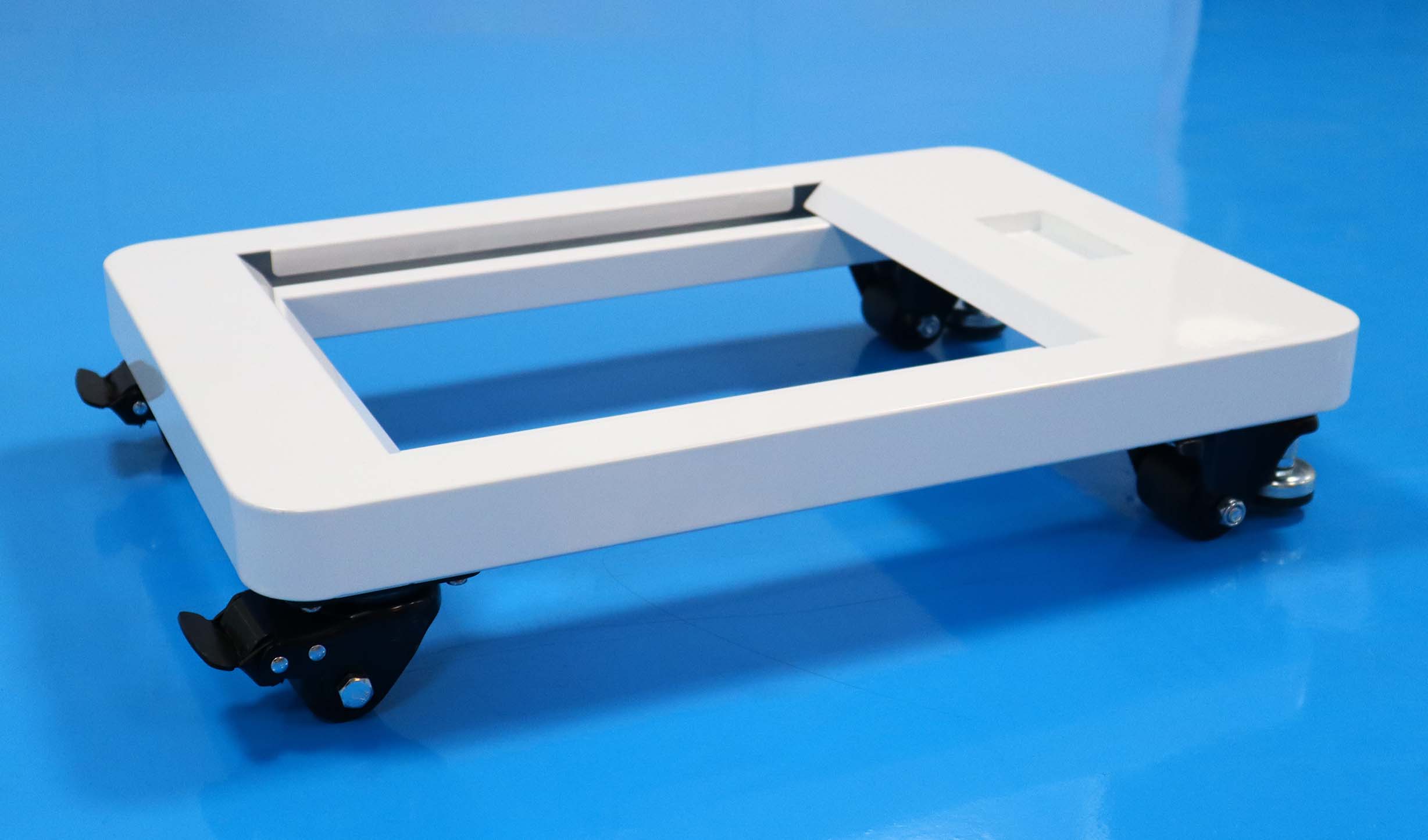

Universal wheel system base, flexible to move and fixed.

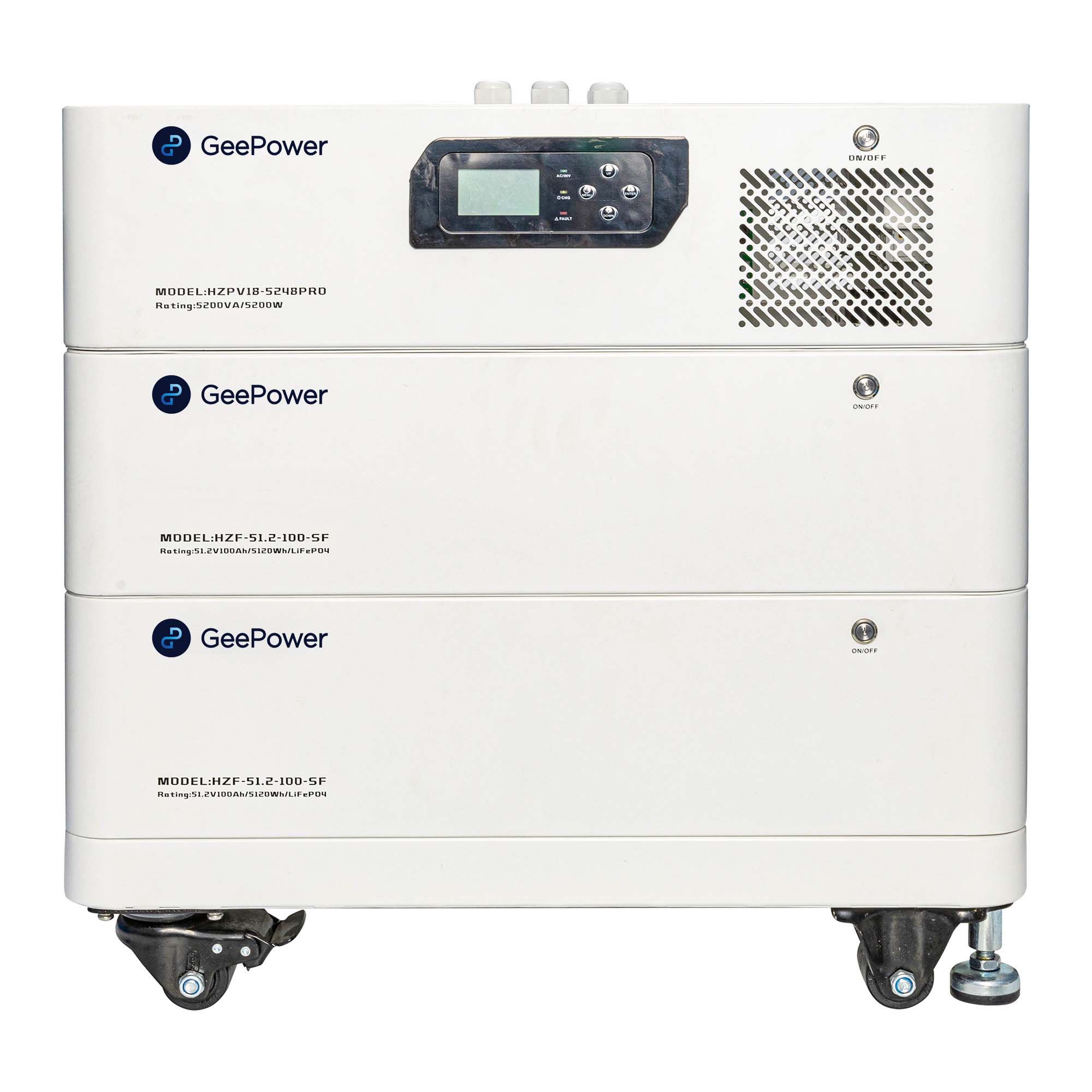

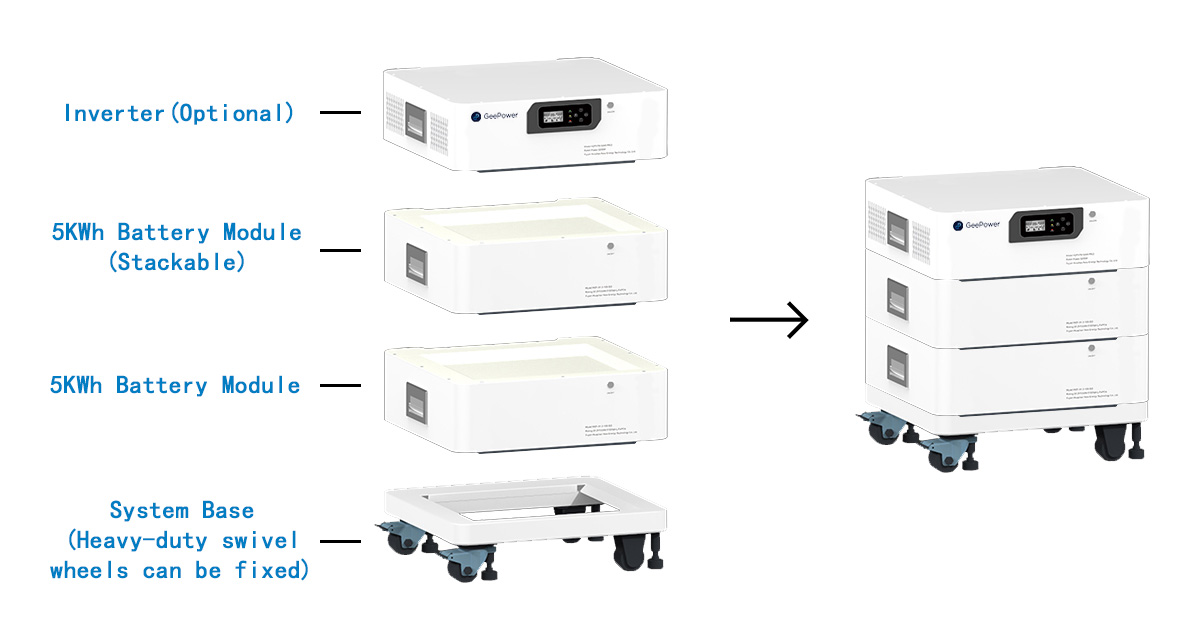

System Components
System Parameter
| Product Type | HZF-51.2-100-SF | ||
| Battery Type |
LiFePO4 |
||
| Battery System Capacity | 10.24KWh | 15.36KWh | 20.48KWh |
| Battery System Voltage |
51.2V |
||
| Battery System Capacity | 200Ah | 300Ah | 400Ah |
| Battery Inverter Name | HZPV-5048VHM | ||
| Dimension [L*W*H] | 680*460*740mm | 680*460*915mm | 680*460*1090mm |
| Battery Module Quantity |
2pcs |
3pcs |
4pcs |
| Net Weight | About 136kg | About 184kg | About 232kg |
| Battery Module Capacity | 5.12KWh | ||
| Battery Module Voltage | 51.2V | ||
| Battery Module Capacity | 100Ah | ||
| Battery System Charge Upper Voltage |
58.4V |
||
| Battery System Max Continuous Charge Current | 50A | ||
| Battery System Max Continuous Discharge Current |
100A |
||
| Operating Temperature Range | Charge: 0~45℃； Discharge: -20~50℃ | ||
| Discharging End-off Voltage | 42V | ||
| Communication | Canbus-Inverter；RS485-Parallel communication | ||
| Limited Warranty |
5 Yeays |
||
| Operating Condition |
Strictly Indoor |
||
| Protective Class |
IP20 |
||
| System Base Net Weight |
10.4kg |
||
Optional

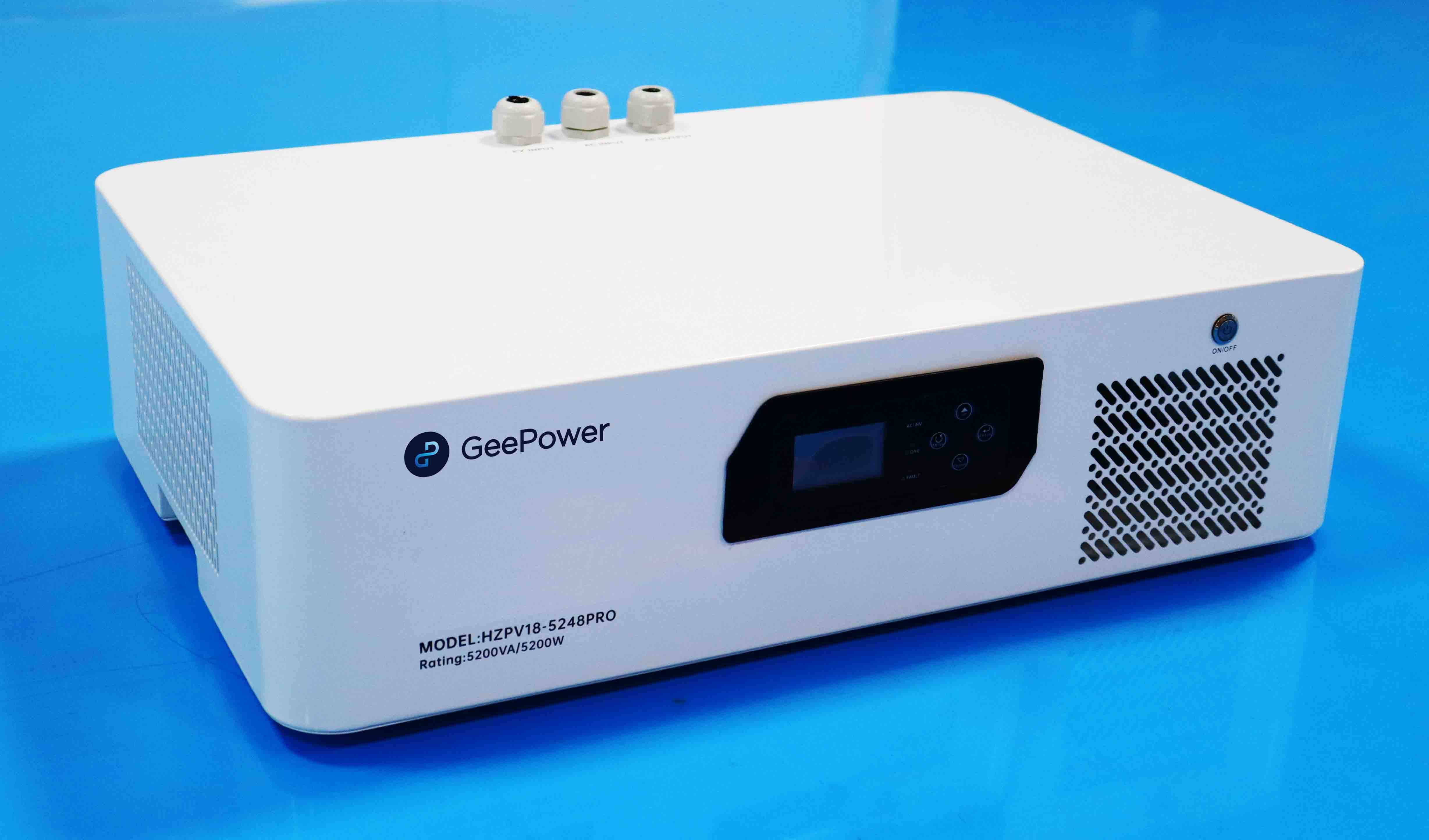

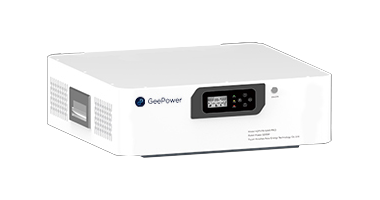

Multi-Function Integrated Inverter
Inverter + MPPT Solar Charger + Battery Charger Functions
Inverter Parameter
|
Inverter Output |
Rated Power | 5000W | |
| AC Voltage Regulation (Batt.Mode) | (220VAC~240VAC) ± 5% | ||
| Inverter Effciency (Peak) | 93% | ||
| Transfer Time | 10ms(UPS/VDE4105) 20ms (APL) | ||
| Inverter AC Input | Voltage | 230VAC | |
| Frequency Range | 50Hz /60Hz (Auto Sensing) | ||
|
Solar Charger & AC Charger |
Number of MPPT | 2 | |
| PV Input Power | 4500W*2 | ||
| Maximum PV Array Open Circuit Voltage | 145VDC | ||
| PV Array MPPT Voltage Range | 60~130VDC | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum AC Charge Current | 50A（230V） | ||
| Inverter WiFi |
Optional |
||
| Inverter Dimension [L*W*H] |
680*460*240mm |
||
| Inverter Net Weight | About 39kg | ||

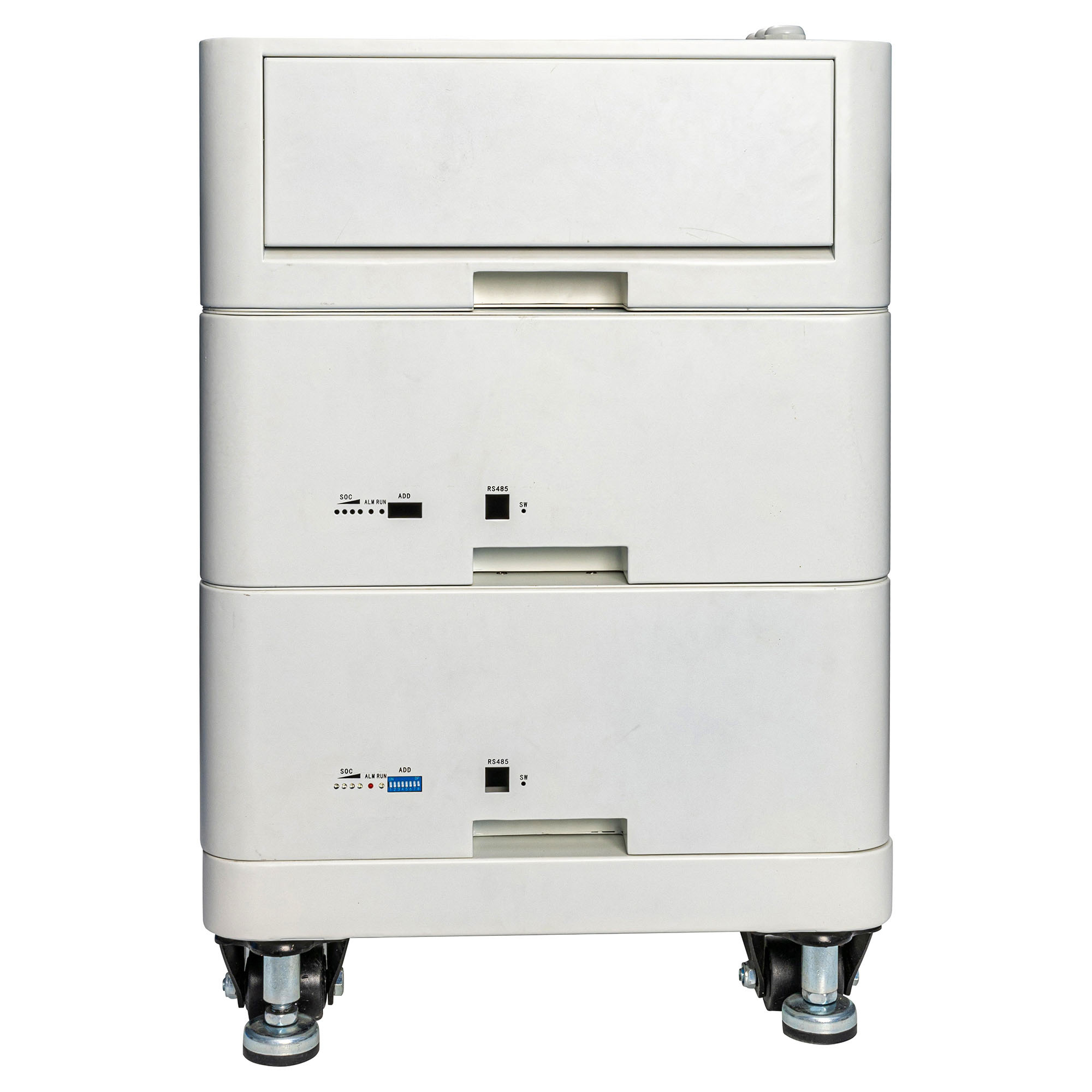

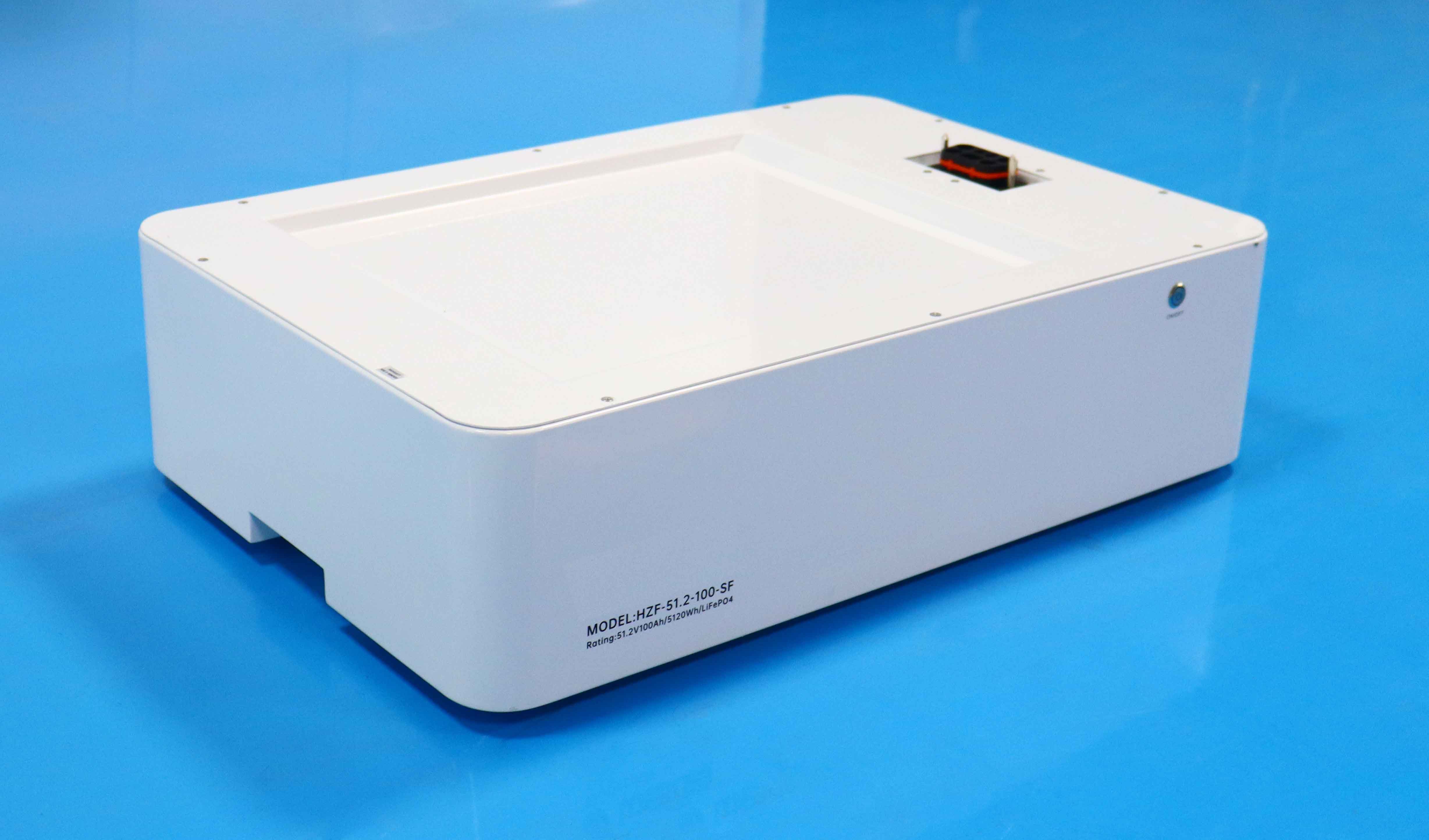

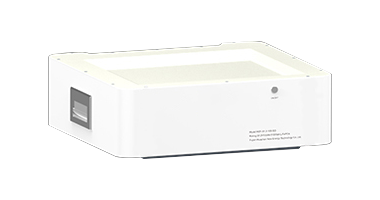

5.12KWh Battery Module
Can be Stacked and Expanded
Battery Module Parameter
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12KWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 42V~58.4V |
| Max Continuous Charge Current | 50A |
| Max Continuous Discharge Current | 100A |
| Net Weight | About 47.5kg |
| Dimension [L*W*H] | 680*460*175mm |
| Operating Temperature Range | Charge:0~45℃; Discharge:-20~50℃ |
| Communication | CAN/RS485 |
| Limited Warranty |
5 Years |

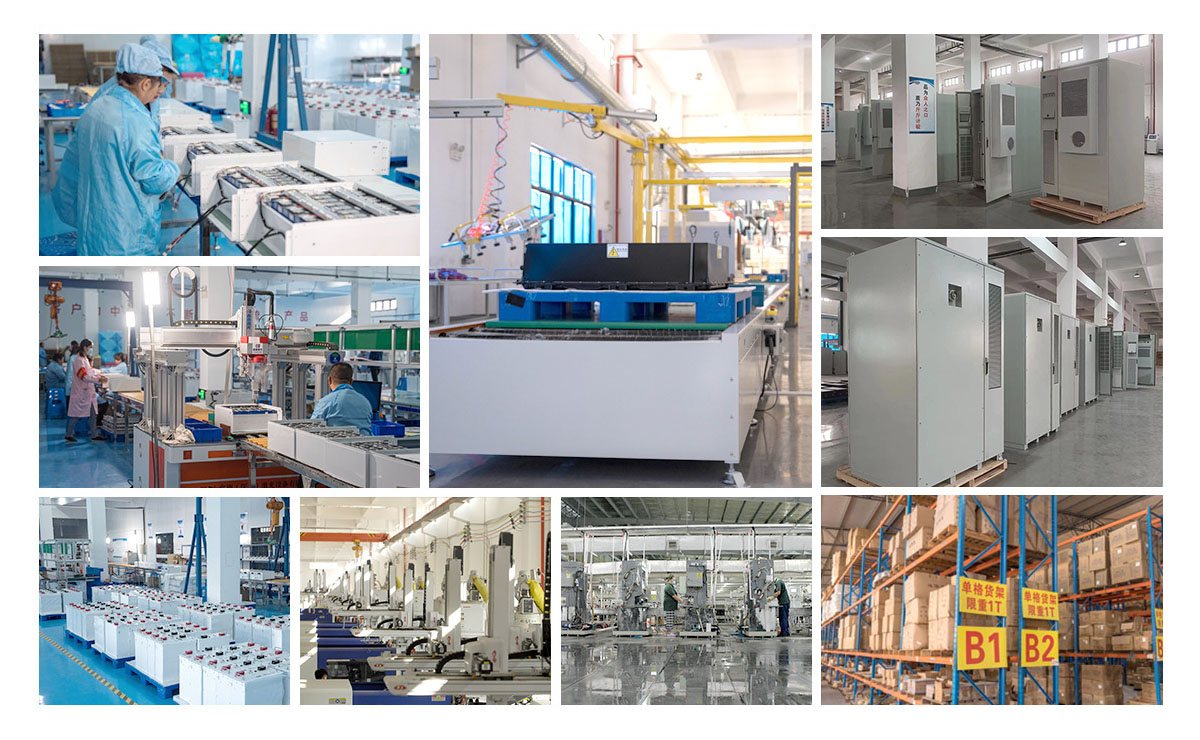

Our Factory
