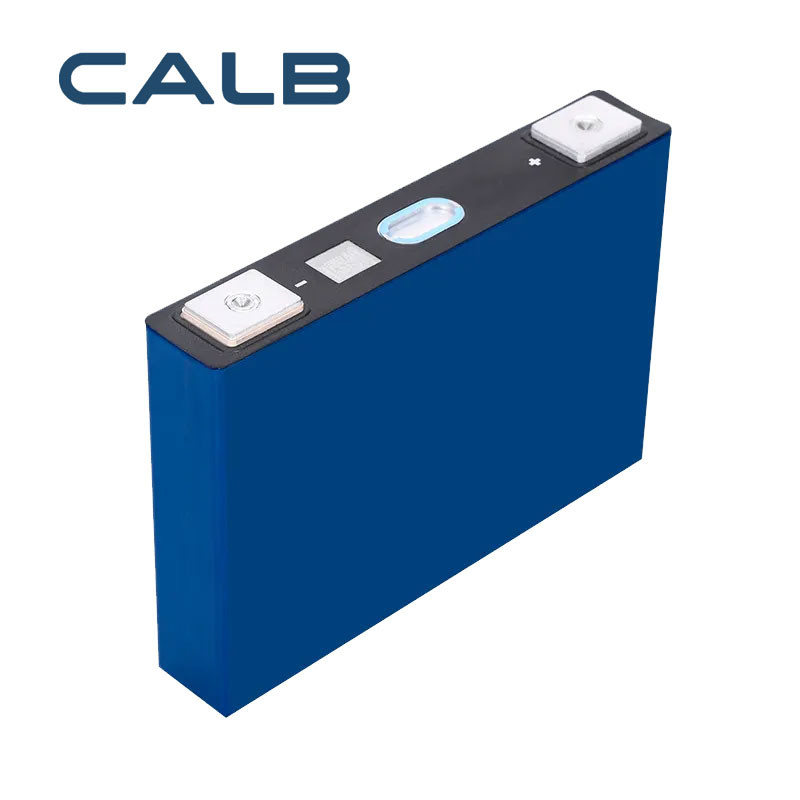

CALB 3.7v 113 AH Prismatic LifePo4
Short Description:
-
CALB 3.7V, 113Ah lithium-ion battery. -
NMC chemistry for high energy efficiency and long lifespan.
-
Suitable for EVs, renewable energy storage, and power banks.
-
113Ah capacity delivers reliable, consistent power for extended use.
-
Safety features protect against overcharge, overheat, short circuits.
-
Manufactured with high-quality materials.
-
High Consistency -
Famous Brand -
Slim Size -
High Energy
Prismatic NCM Cell
CALB's L221N113A NMC battery is designed to withstand harsh conditions, remaining reliable even in extreme environments. With 113Ah capacity and excellent power delivery, this lithium-ion battery is ideal for demanding applications requiring long-lasting, dependable power.
CALB prismatic NMC cells are renowned for exceptional quality and performance. Featuring 3.7V operation and superior energy density, these Grade A cells offer extended cycle life, making them perfect for electric vehicles. Robust safety mechanisms protect against overcharge, over-discharge, and short circuits, ensuring reliable and safe power.
Invest in CALB's L221N113A NMC battery for efficient energy storage and reliable performance.
Full Life Cycle Management
Battery life Cycle management
High Consistency of performance
Dimensional Standard
Meet a variety of
dimensional standards
Environmental Friendly
Passed environmental
system certification
Stability
Excellent performance in Low temperature
Good environmental adaptability
Long Life
long cycle life
Up To 2000 times
Ultra Safe
Explosion-proof, Anti-short circuit design
high safety performance

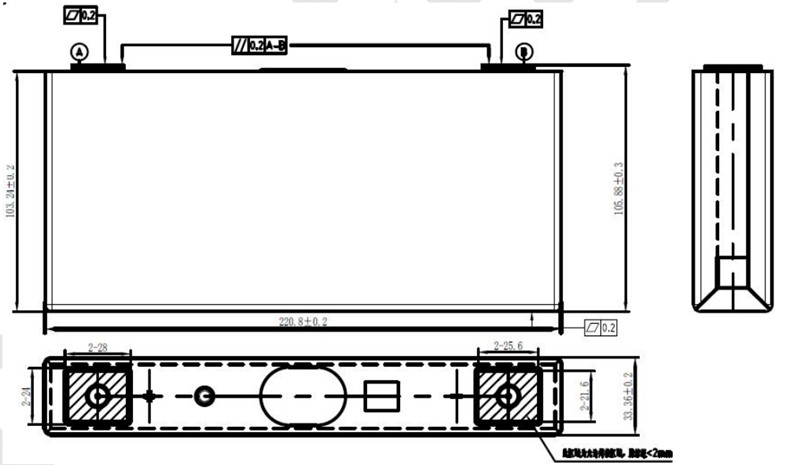

Size Diagram
Product Parameters
|
Brand |
CALB |
|
Model Number |
L221N113A |
|
Type |
NCM |
| Nominal Capacity | 113.5Ah@1C |
|
Typical Voltage |
3.7V |
| AC Internal Resistance |
0.4~0.6mΩ |
| Standard charge and discharge Charge/Discharge Current |
0.5C/0.5C |
| Standard charge and discharge Charge/Discharge Cut-off Voltage | 4.35V/2.8V |
| Continuous Charge/Discharge Current | 1C/1C |
| Storage Humidity | ＜70﹪RH |
| Capability retention under room temperature | Capability retention≥94% |
| Maximum Pulse Discharging Current（Short Pulse） |
500A |
|
Recommended SOC window |
5%-97% |
|
Charging Working Temperature |
-20℃~55℃ |
|
Discharging Working Temperature |
-30℃~55℃ |
|
Size(H*W*T) |
105.88*220.8*33.36MM |
|
Weight |
1800±25g |
| Shell Material | Aluminium alloy |
|
Cycle life |
≥2000 Times |
Electrical Performance Diagram

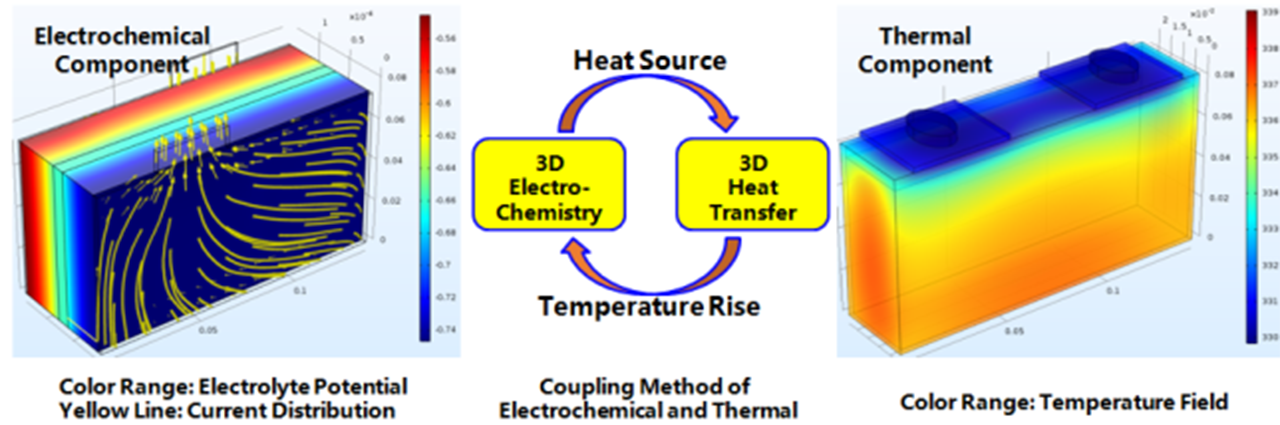

1.Thermal-Electrochemical Coupled Model

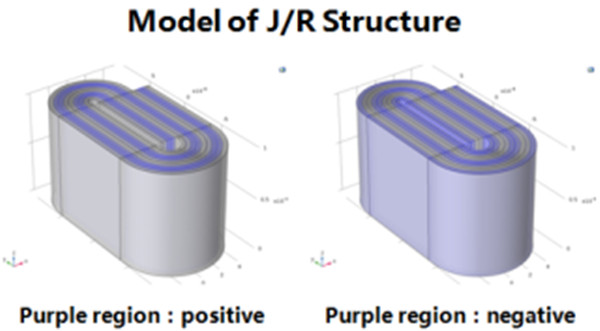

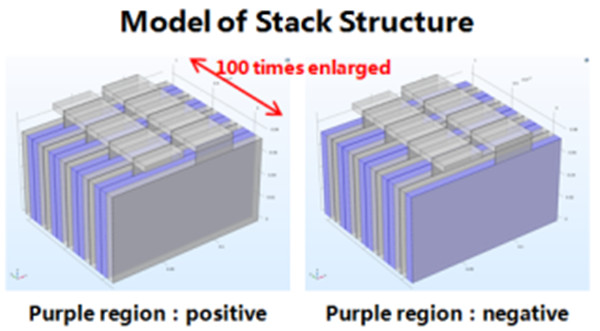

2.Total J/R and Stack Model

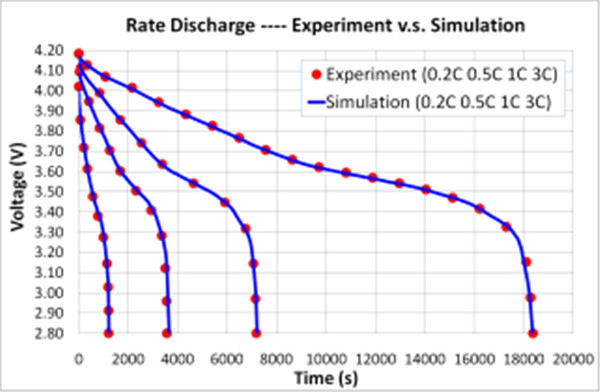

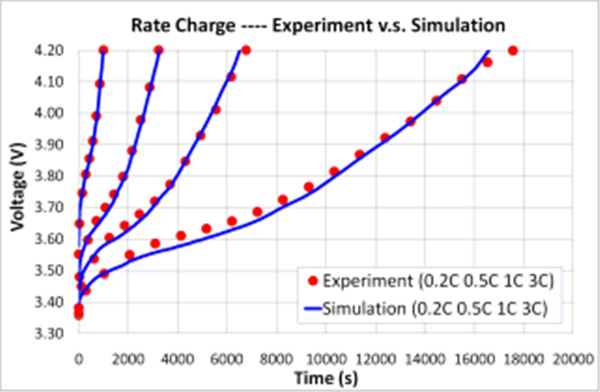

3.Charge and discharge curve: comparison of simulation and actual measurement accuracy
Package Diagram
Famous Brand Manufacturer
Production Line
Products Certificate
Empower your world with CALB NCM battery cells - Unleashing boundless energy for a brighter future.
CALB's advanced NCM battery cells ignite a brighter, more sustainable future. With unparalleled power and efficiency, these exceptional cells unleash limitless energy, enabling longer-lasting and more eco-friendly solutions across industries - from electric vehicles to renewable energy.
Embracing CALB NCM technology empowers businesses and individuals to drive innovation and progress towards a cleaner world. Renowned for their cutting-edge performance and superior reliability, these battery cells fuel the movement towards a future filled with boundless potential.
