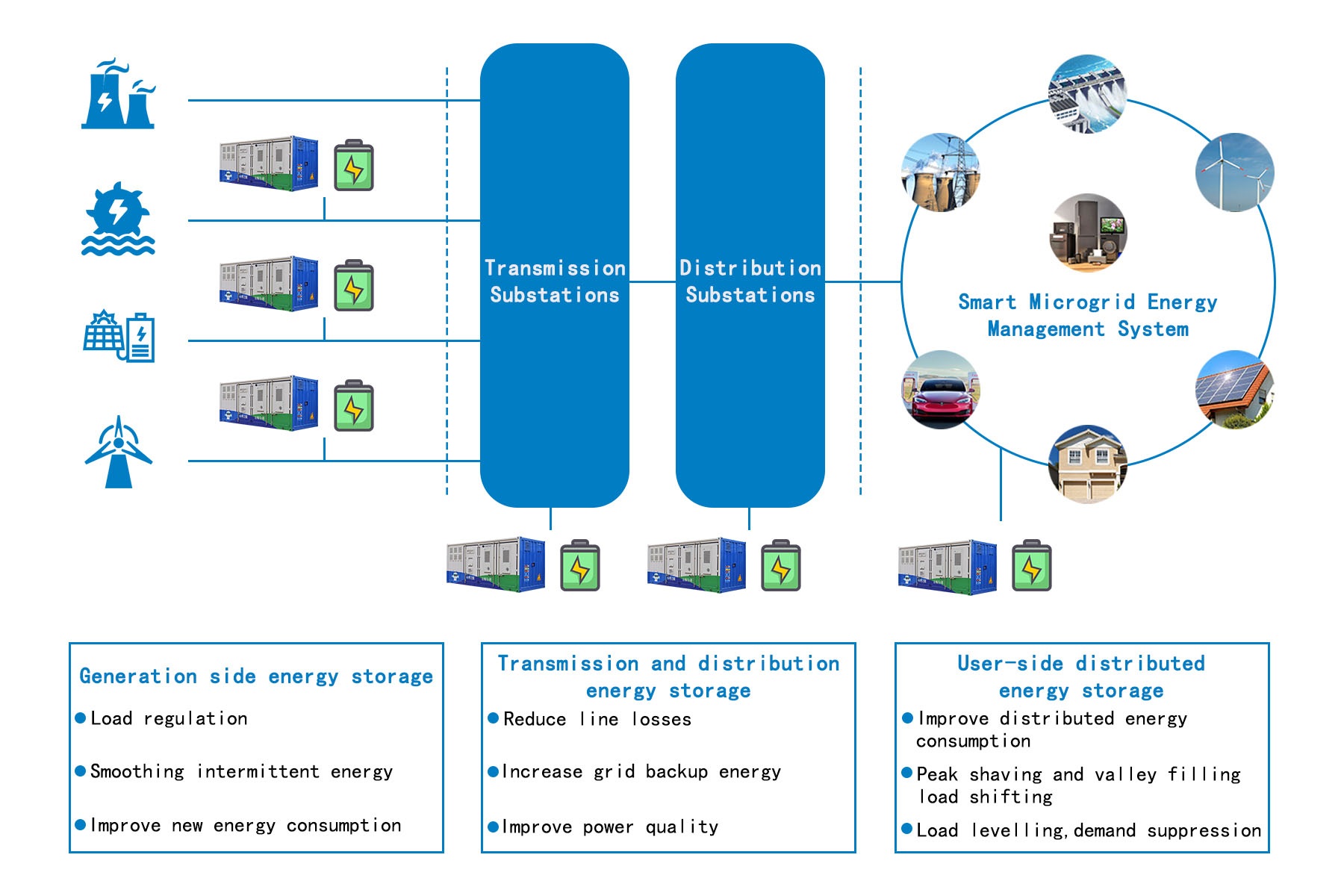

System Applications

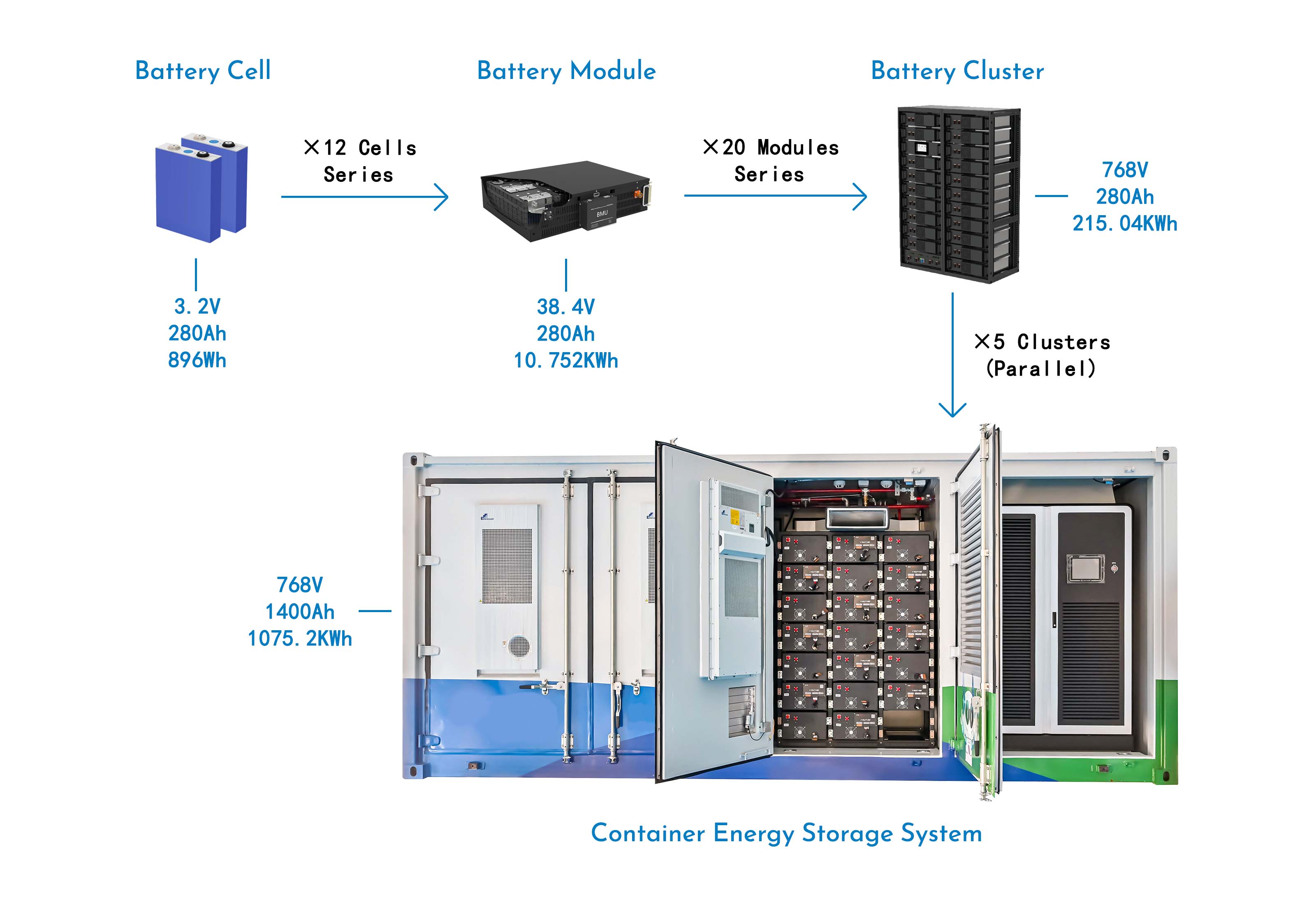

System Components
Battery Cell
Brand new grade A battery cells, Safe and Long life
3.2V 280Ah High energy density LiFePO4 core, Cycle times up to 6000
Square aluminum shell design, Reduce damage to battery core
Installed film-shaped explosion-proof valve, Discharge high pressure gas automatically, Improve safety
Using high temperature solid phase polymerization technology, Internal structure more stable and safe
Battery Module
The battery module consists of 16 3.2V 280Ah LiFePO4 cells, 1 parallel and 16 strings (16S1P) to form a 51.2V 280Ah module
The module has a build-in battery management unit (BMU) system, which collects the voltage & temperature of each cell and manages equalization of cells, Ensure the normal operation of the whole module safely and efficiently
Multiple protection and using CAN communication method, Remote and real time monitoring of batteries data, Ensure battery pack performance reliability
Internal resistance of the battery is small and the rate discharge performance is excellent, Wide operating temperature range, more reliable
The modules can be connected in series or parallel, meet the different needs of voltages and capacities
Battery Cluster
The battery cluster consists of 15 battery modules connected in series, which is 768V 280Ah 215KWh
A high voltage control box connected, with build-in battery management system (BMS), Control and protect voltages and circuits
The BMS has a two-level architecture, with master control and slave control, can monitor the voltage, current and temperature of each battery cell, Comprehensive battery monitoring and protection, more safe and reliable
Comprehensive and reliable thermal management design, more safe and stable
