1331.2V 418kWh Container BESS
Short Description:
-
All-in-One Containerized Lithium Battery Energy Storage System (BESS). -
High-capacity 1331.2V, 418kWh configuration.
-
Fully integrated and pre-engineered for rapid deployment.
-
Containerized design enables easy transportation.
-
Leverages advanced lithium-ion battery technology.
-
Intelligent battery management system for safety, efficiency.
-
Grid-tied inverters enable seamless renewable integration.
-
Versatile solution for utility, commercial, industrial use cases.
-
Optimized for renewable energy time-shifting, peak shaving.
-
Weatherproof enclosure ensures reliable 24/7 operation.
-
Plug-and-play architecture simplifies installation, commissioning.
-
Equalization -
Low Cost -
High Performance -
Reliable
Comprehensive Container-Based Energy Storage System
The container-based power station energy storage system integrates battery modules, battery management, monitoring, and auxiliary systems within a single containerized solution. This all-in-one design enables a wide range of applications, including renewable integration, EV charging, and grid services.
As a standalone technology, the battery storage system can be deployed on-site to store energy generated by solar PV panels for use during non-generating periods, optimizing renewable energy utilization. The modular, containerized approach offers flexibility and scalability to meet diverse energy storage requirements.
Features of the Energy Storage System
Mature, safe, and eco-friendly high-phosphate lithium iron battery meets MW-level power output requirements
High energy conversion efficiency, including comprehensive control strategies for industry-leading performance
Dynamic balancing battery management technology for quick and automatic battery maintenance
Multi-level battery management system for flexibility, reliability, and ease of expansion and upgrade
Remote viewing capability for real-time understanding of system information
Battery cabinet parameters
Integrated Battery Modules
Advanced Battery Management System (BMS)
Variable Frequency Liquid Cooling Unit
Integrated Fire Protection System
Comprehensive Monitoring and Control Systems
Modular and Scalable Design
Flexible Deployment Options
Seamless Integration with Renewable Energy Sources
| Battery system configuration | 1P416S (1P52S*8) |
| Rated voltage of battery | 1331.2V |
| Battery voltage range | 1164.8V～1497.6V |
| Nominal energy (BOL) | 418kWh |
| Rated charge/discharge current | 157A |
| Charge/discharge rate | ≤0.5P |
| Cycle life | 6000 |
| Protection level | IP54 |
| Thermal management | Liquid cooling |
| Liquid cooling unit | Cooling capacity 5kW |
| Fire protection system | Heptafluoropropane/aerosol/perfluorohexanone/water (optional) |
| Operating temperature range | -20～50℃(discharge) |
| 0～50℃(charge) | |
| Operating humidity range | 0～95%（non-condensing） |
| Permissible altitude | ≤3000m (derating above 2000m） |
| Noise level | ≤75dB |
| Weight | 3500kg |
| Dimensions (W*D*H) | 1300*1350*2300mm |
| Communication interface | RS485/Ethernet/CAN |

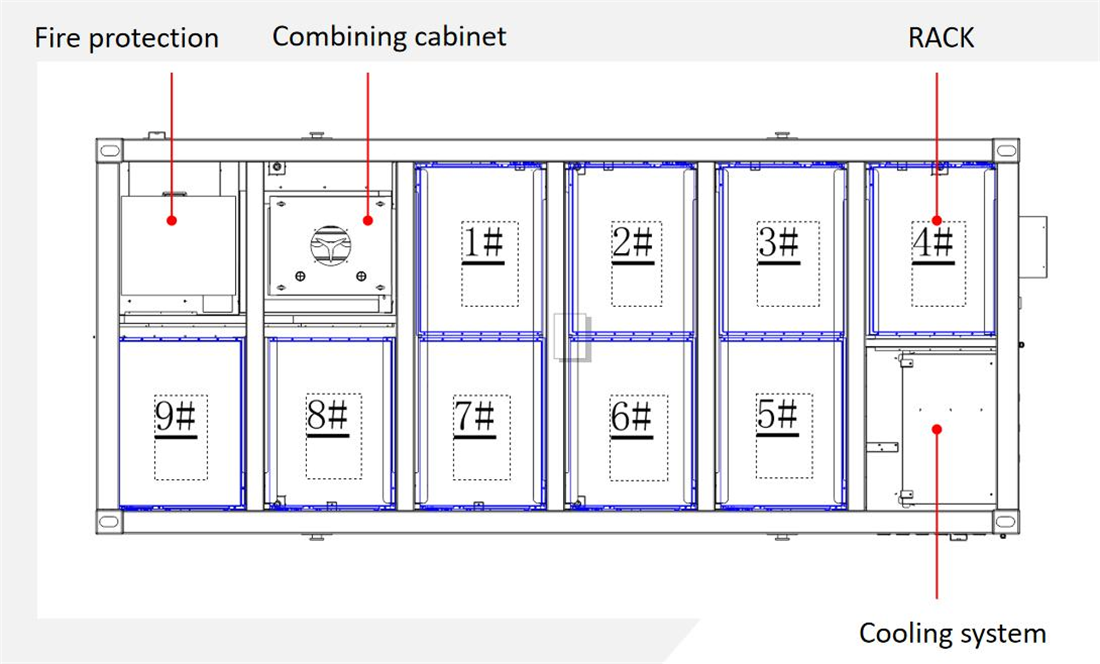

Container layout diagram
Features
1. Highly Integrated
Integrated design of boosting inverter, highly compact
Improved space utilization, easy installation and deployment
Unique modular design, flexible power configuration
2. Intelligent Coordination
Equipped with automatic load peak shaving and valley filling strategy
Multiple operating modes: VSG/PQ/VFOff-grid synchronization and black start function
3. Efficient and Stable
1500V system, wide DC voltage range
Unique multiple branch DC connection, avoid direct battery cluster
parallel connection, effectively solve circulation problem
4. Grid-friendly Features
LVRT and HVRT functions
Active and reactive power four-quadrant adjustment functions
Rapid power response (<10ms)

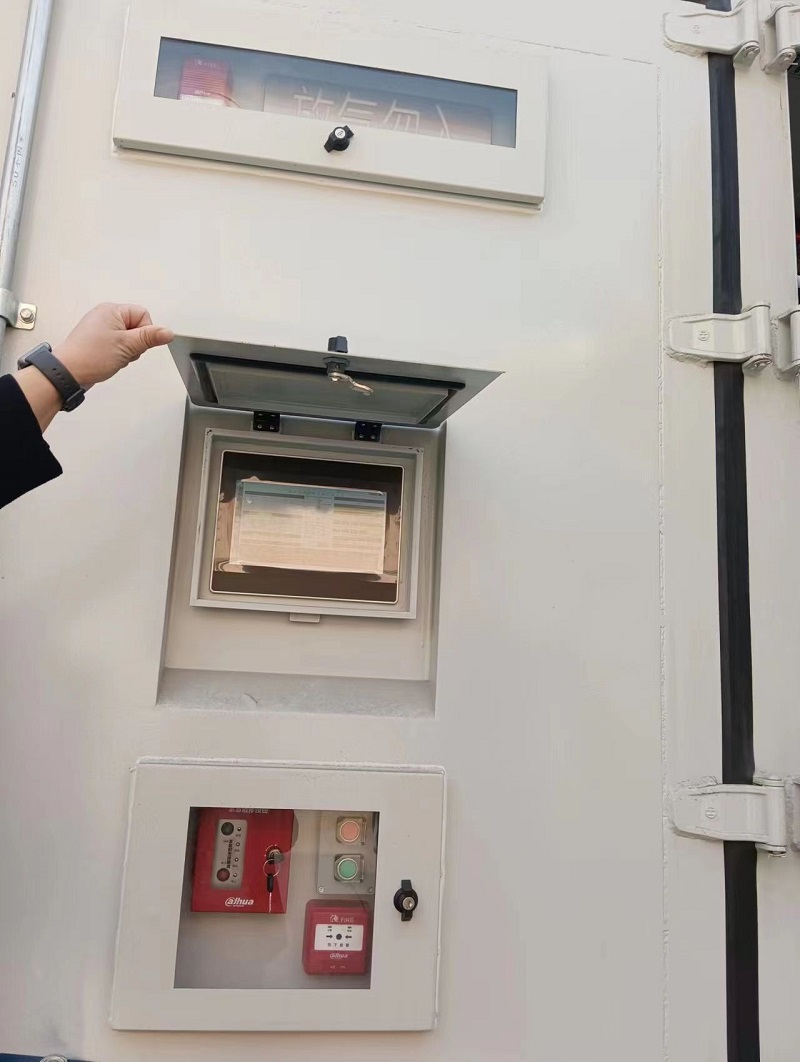

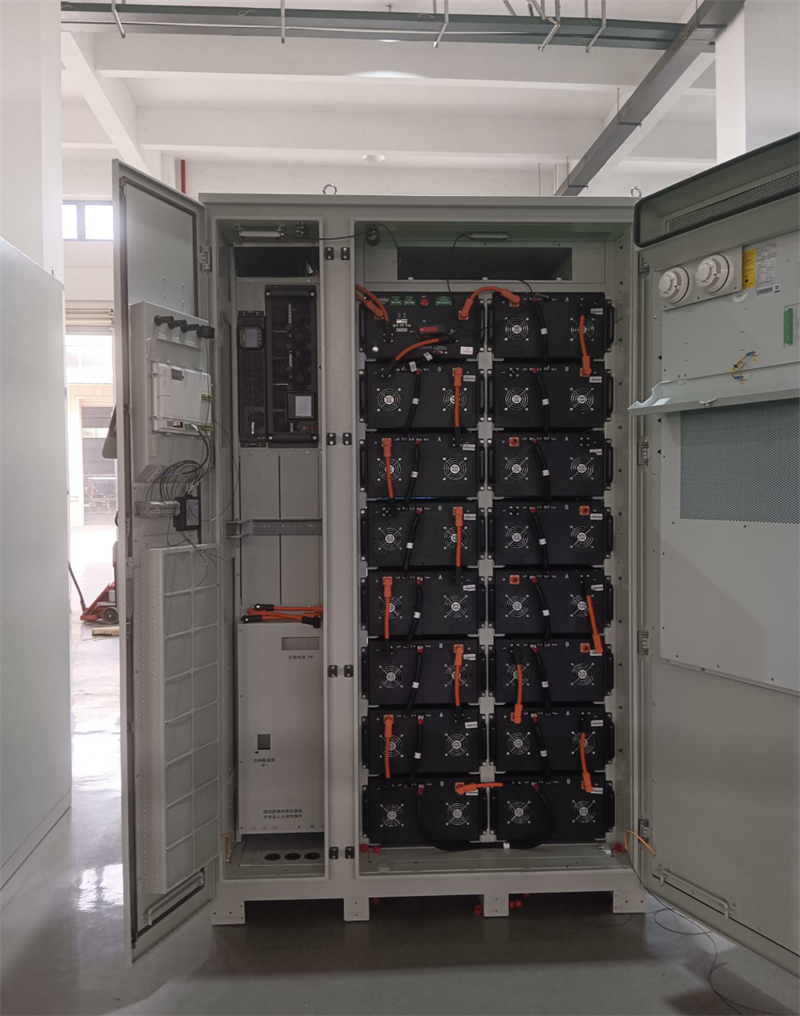

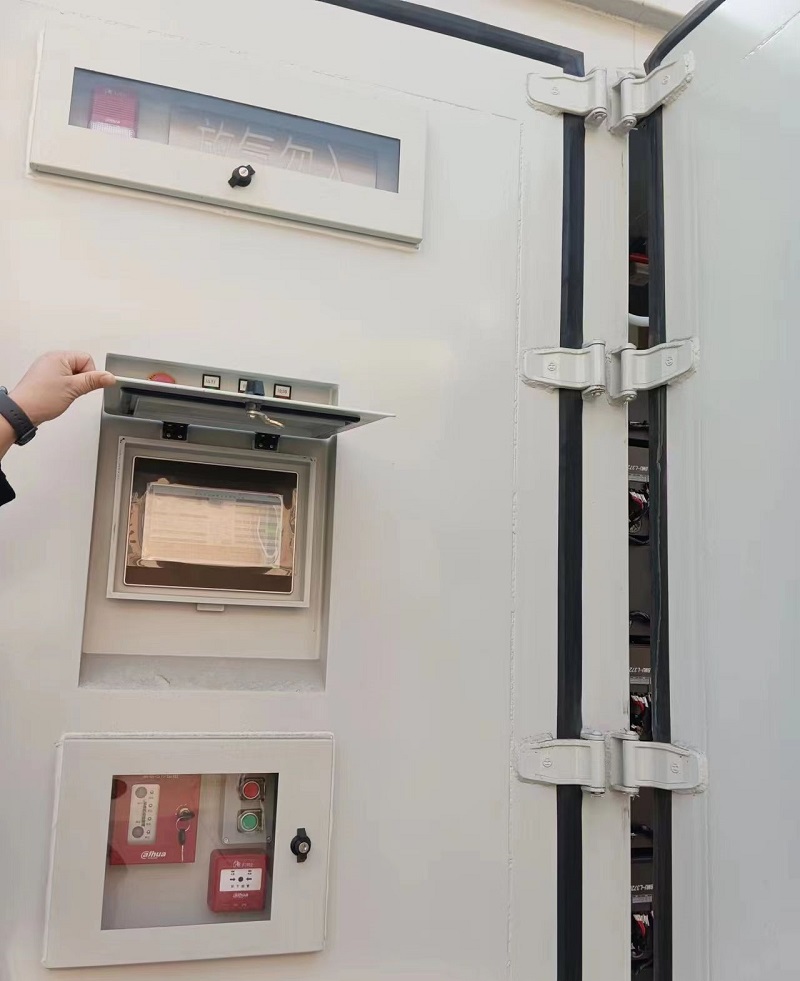

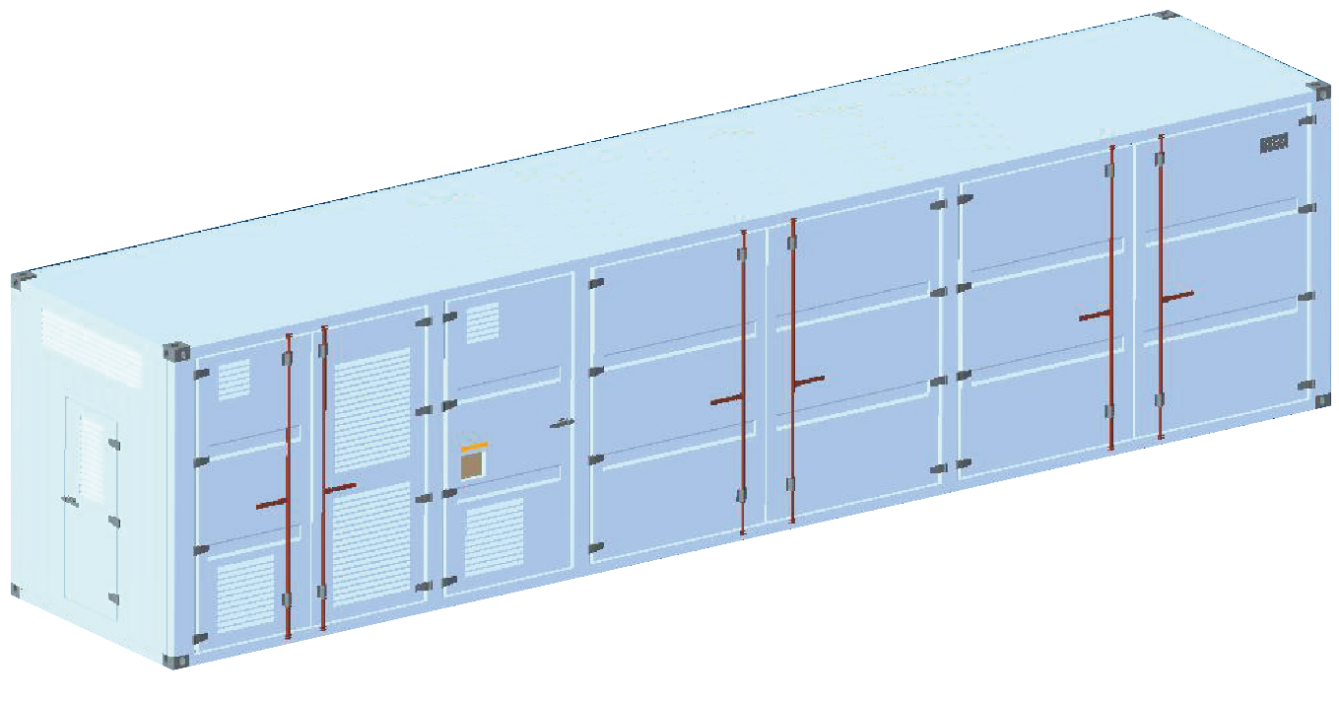

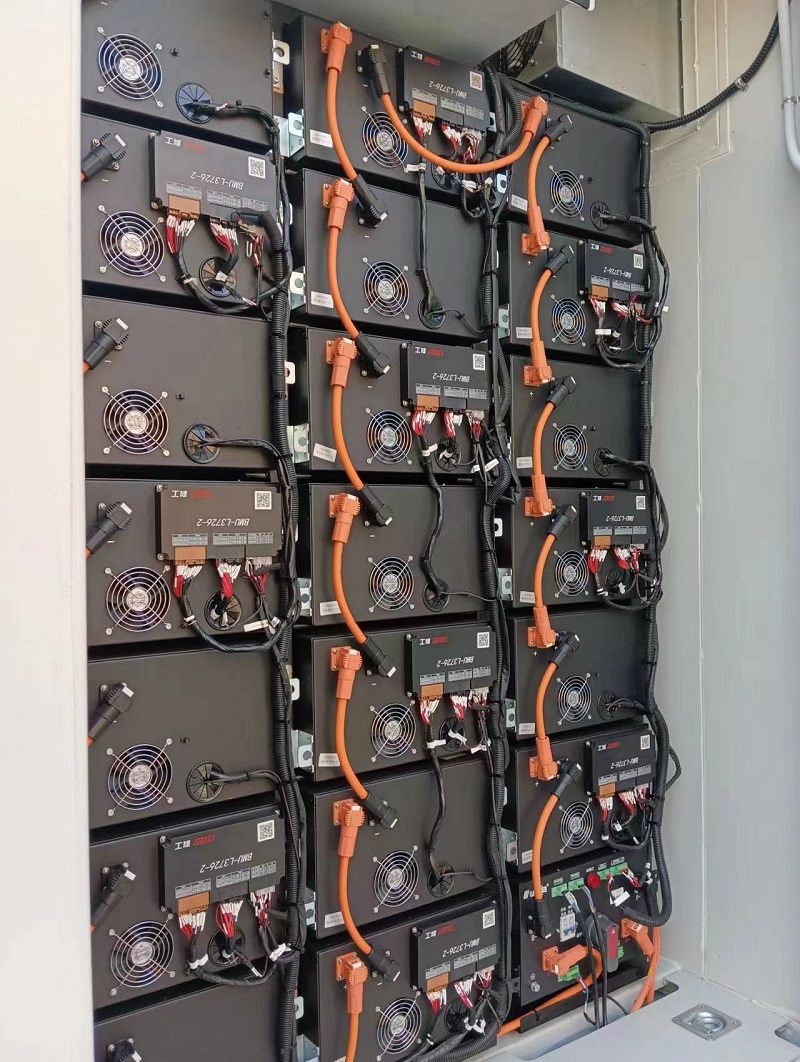

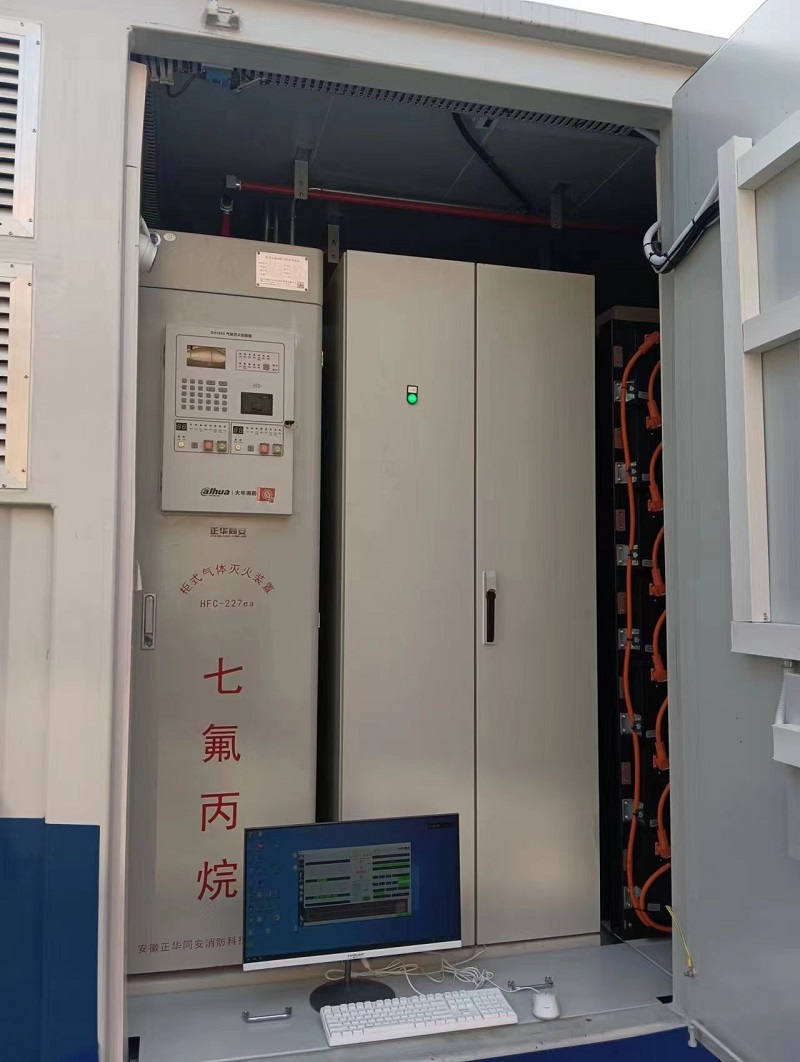

Product display
