30V50Ah DC Power System
The composition of the DC power system
Rectifier module
Battery system
Comprehensive detection unit
Centralized monitoring module
Other components
The work principle of the DC system
AC-to-DC Power Conversion
In normal operating mode, the AC power distribution unit channels grid electricity to the high-frequency rectification modules. These modules efficiently convert the alternating current into direct current, simultaneously charging the battery system and supplying stable DC power to the connected load through the DC distribution network. This seamless AC-to-DC conversion ensures uninterrupted operation, making the system well-suited for mission-critical applications requiring a reliable and consistent power supply.
AC power loss working state:
In the event of an AC grid outage, the system seamlessly transitions to battery backup mode. As the rectifier modules cease operation, the battery pack immediately takes over powering the connected DC loads without interruption. A monitoring module tracks the battery's discharge voltage and current in real-time, triggering alarms when the set end-of-discharge threshold is reached. Simultaneously, the module processes and displays data from the power distribution monitoring circuits, providing comprehensive status updates during the grid failure.
Battery System
Battery Cell
Battery cell data sheet
| No. | Item | Parameters |
| 1 | Nominal voltage | 3.2V |
| 2 | Nominal capacity | 50Ah |
| 3 | Rated working current | 25A(0.5C) |
| 4 | Max. charging voltage | 3.65V |
| 5 | Min. discharge voltage | 2.0V |
| 6 | Max Pulse charge current | 2C ≤10s |
| 7 | Max Pulse discharge current | 3C ≤10s |
| 8 | AC internal resistance | ≤1.0mΩ (AC Impedance, 1000 Hz) |
| 9 | Self-discharge | ≤3% |
| 10 | Weight | 1.12±0.05kg |
| 11 | Dimensions | 148.2*135*27mm |
Battery Pack
Battery pack data sheet
| No. | Item | Parameters |
| 1 | Battery type | Lithium iron phosphate(LiFePO4) |
| 2 | Nominal voltage | 32V |
| 3 | Rated capacity | 50Ah @0.3C3A，25℃ |
| 4 | Operating current | 25Amps |
| 5 | Peak current | 50Amps |
| 6 | Operating voltage | DC 25~36.5V |
| 7 | Charge current | 25Amps |
| 8 | Assembly | 10S1P |
| 9 | Boxmaterial | Steel plate |
| 10 | Dimensions | 290(L)*150(W)*150(H)mm |
| 11 | Weight | About 14 kg |
| 12 | Operating temperature | - 20 ℃to 60 ℃ |
| 13 | Chargetemperature | 0 ℃to 45 ℃ |
| 14 | Storage temperature | - 10 ℃to 45 ℃ |
BMS Electrical Parameters
| Technology Name | Common parameters |
| Charge and discharge withstand voltage | 100V |
| communication method | Bluetooth, RS485 , Serial port , CAN GPS |
| Number of battery strings | 9-15 skewers |
| Cell Type | Ternary lithium battery, lithium iron phosphate, lithium titanate |
| Temperature number | 3 |
| Balance current | 120mA |
| voltage range | 0.5V – 5V |
| Voltage accuracy | 0.5 % ( 0 ℃ - 80 ℃ ) , 0.8 % ( -40 ℃ - 0 ℃ ) |
| temperature range | -40 ℃ - 80 ℃ |
| Current range | -100A – 100A ( determined by the model of the same series product) |
| Current accuracy | 2% (-100A – 100A) |
| CAN communication | Support CANOPEN , CAN customization |
| RS485 | Isolation, modbus protocol |
| Manual wake-up | support |
| Charging wake-up | support |
| Bluetooth | Support Android APP , Apple mobile phone APP |
| Low battery indicator | Low battery alarm IO output |
| SOC Accuracy | <5% |
| B- Drop protection | not support |
| Operating power consumption | 20mA |
| Standby power consumption | 2mA |
| Storage and transportation power consumption | 40uA |
| Event Storage | 120 loop event records |
| Status Indicator | 2 LED status lights |
| Battery indicator | Support 5 -grid power display, 4 -grid power display and LCD digital display |
| storage temperature | -20 ℃ - 60 ℃ |
| 0V charging | Does not support 0V charging |
| Hibernation Description | BMSAutomatic standby conditions :The automatic sleep function is set to on. When the battery is not charged or discharged, there is no communication, no Bluetooth link, and no balancing. 30 S (time can be adjusted by the host computer ), thenBMS Enter standby mode.the BMS automatically enters standby mode, the charge and discharge ports remain in the closed state (powered ) . |

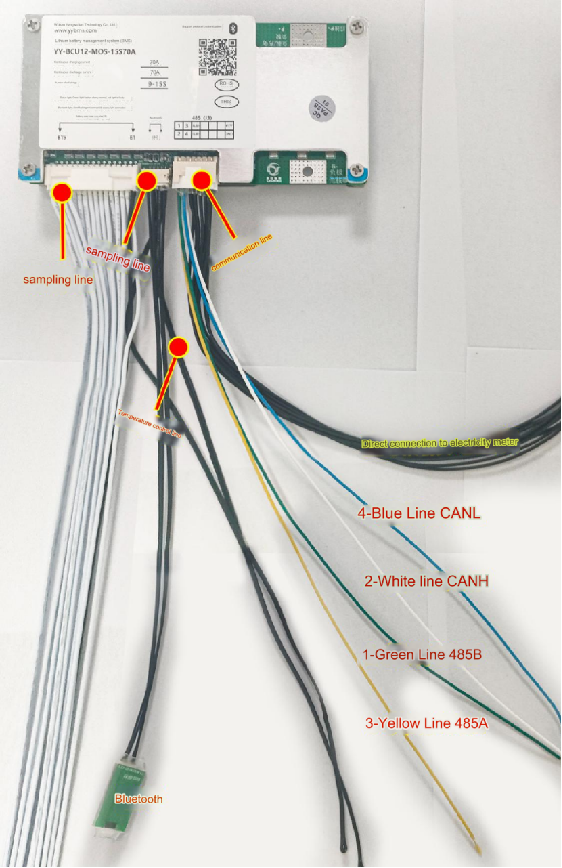

How to connect the BMS
30V DC Power Rectifier-Technical parameters
Input characteristics
| Input voltage range | 120 ~ 370VDC |
| Frequency range | 47 ~ 63Hz |
| Alternating current | 3.6A/230VAC |
| Inrush current | 70A/230VAC |
| Efficiency | 89% |
| Power factor | PF>0.93/230VAC (full load) |
| Leakage Current | <1.2mA / 240VAC |
Output characteristics
Power Rectifier function:1. DC OK signal PSU on: 3.3 ~ 5.6V; PSU off: 0 ~ 1V2. Fan control When the load is 35±15% or RTH2≧50℃, the fan turns on
| Output voltage range | 28.8 ~ 39.6V |
| Regulation | ±1.0% |
| Ripple & Noise (Max.) | 200mVp-p |
| Voltage Tolerance Limit | ±5% |
| Start-up, rise time | 1,800 ms, 50ms / 230VAC(Full load) |
| Rated current | 17.5A |
| Max transient current | >32A |
| Charging Hours after battery total discharged | <3Hours |
| DC Voltage | 36V |
| Rated Power | 630W |
| Proposed Standing load | <360W |
Power Rectifier Protect function:
1. Overload protection 105%~135% of rated output power Protection mode: constant current limit, automatically recovers after abnormal load conditions are removed
2. Overvoltage protection 41.4~48.6V Protection mode: shut down output, normal output can be restored after power is restarted
3. Overtemperature protection shuts down output, and automatically recovers after temperature drops
Power Rectifier Working Graph
Ambient temperature (℃）
Input voltage(V)60Hz
Monitoring System
Introduction
The Cyclone series features a human-machine interface powered by an integrated touch screen and detection unit, forming a comprehensive power supply monitoring system. Leveraging the UM series monitors, the core of our proprietary technology, these solutions cater to DC systems up to 1000Ah, managing charge-discharge operations and delivering robust monitoring capabilities. Cyclone monitors seamlessly integrate with various charging modules from our portfolio, enabling the deployment of power supply systems across diverse voltage levels.
Equipped with reliable communication capabilities, Cyclone monitors excel in unattended and automated operation environments, providing remote oversight and control for mission-critical applications.
Basic configuration:
Human-machine interface: TPC 70 22 ( 7- inch high-brightness TFT LCD display)
Controller: TY-UM 1 unit
7-inch TFT LCD display
Current sensor: 2
Small power supply: 1 set
Display Interface Details
DC Panel Cabinet
The dimensions of DC power supply system cabinet are 700(H)*500(W)*220(D)mm .
Electrical Schematic for DC system
