EVE- 280AH Lifepo4 Battery Grade A+
Short Description:
3.2V 280Ah Grade A EVE Lithium-Ion Battery.
Nominal Voltage: 3.2V.
Nominal Capacity: 280Ah.
Energy Density: 140 Wh/kg.
Cycle Life: >8,000 cycles at 0.5P constant power.
Operating Temperature: -20°C to 55°C.
Dimensions (L x W x H): 495 x 269 x 236 mm.
Long life cycle exceeding 15-20 years.
-
12~18% Energy Saving -
50% Cost-saving -
5 Years -
10 Years
Prismatic LFP Cell
The advanced lithium iron phosphate material is used to construct the highly reliable porous electrode, which makes the electrons and ions move in a stable path, ensures the low expansion rate of the positive plate, and reduces the voltage polarization of the electrode. Special organic additives are added to the electrolyte to form SEl film with low impedance, good density and good flexibility to strengthen the protection of the negative electrode. The flexible and compact assembly design can automatically balance the local expansion stress of the cell, thus extending the cycle life. The world's innovative SCL technology, coupled with minimalist cover technology, helps to break through the bottleneck of battery technology and create high-quality, high consistency battery products.
Automated
Automated production/Product Consistency
Ultra-Safe
Explosion-proof/No Leakage
Stable
Low IR/High CR/Discharge Steadily
Customized Custom-made
Customer Demand Customization
Super Long
Ultra-long life cycle
Environmentally Friendly
Passed environmental system certification

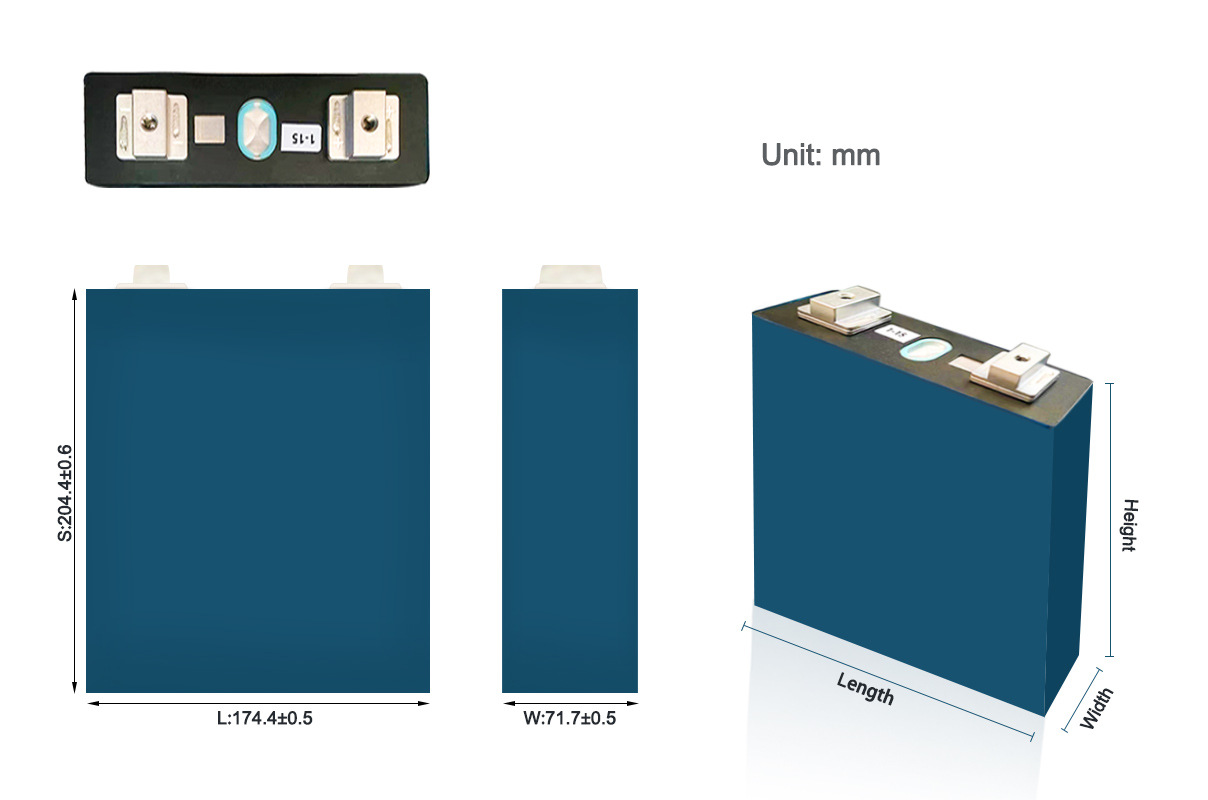

Size Diagram
Product Parameters
|
Ttem |
Specification |
|
Nominal Capacity |
280Ah |
|
Nominal Voltage |
3.2V |
|
Operating Voltage |
2.0V-3.65V |
|
Standard Discharging Power |
448W |
|
Maximum Continuous Discharging Power |
896W |
|
Maximum Discharging Power |
1792W |
|
Standard Charging Power |
448W |
|
Maximum Continuous Charging Power |
896W |
| Maximum Charging Power | 1792W |
|
Operating Temperature |
Charging-0℃~55℃;Discharging--30℃~60℃ |
|
Storage Tempercrature |
-30℃~60℃ |
|
Cathode Material |
LiFePO4 |
|
Cell Weight |
About 5.5Kg |
|
Energy Density |
166Wh/kg |
|
ACR (1KHz) |
≤0.3mΩ |
|
Size(L*W*H) |
174mm*71.7mm*206.8mm |
|
Cycle life |
8000Times(25℃@1C/1C) |
Electrical Performance Diagram
Famous Brand Manufacturer
Production Line
Products Certificate
Widely Application
EVE Battery Cells: Empower Your World with Sustainable Energy!
In conclusion, EVE batteries are a trusted choice when powering a wide variety of devices and devices due to their superior performance, durability, and reliability. Whether you need batteries for personal electronics, automotive, industrial or other applications, EVE offers a comprehensive range of options to meet your specific power requirements. With cutting-edge technology and strict quality control measures, EVE batteries provide consistent and stable power output, ensuring uninterrupted operation and peak performance of your equipment. Trust EVE batteries to provide a long-lasting, high-efficiency power solution, making them ideal for everyday use and demanding applications. From smartphones to electric vehicles, EVE batteries are designed to deliver high-capacity, reliable power that meets the highest industry standards. Invest in EVE batteries and experience the convenience, peace of mind and performance that comes with choosing a reliable power solution.
